Cam Chest Kit for M8 — Gear Drive, Oil Cooled, VVT

S&S CYCLE Cam Chest Kit for M8 — Gear Drive, Oil Cooled, VVT

S&S CYCLE
0925-1666
310-1013B

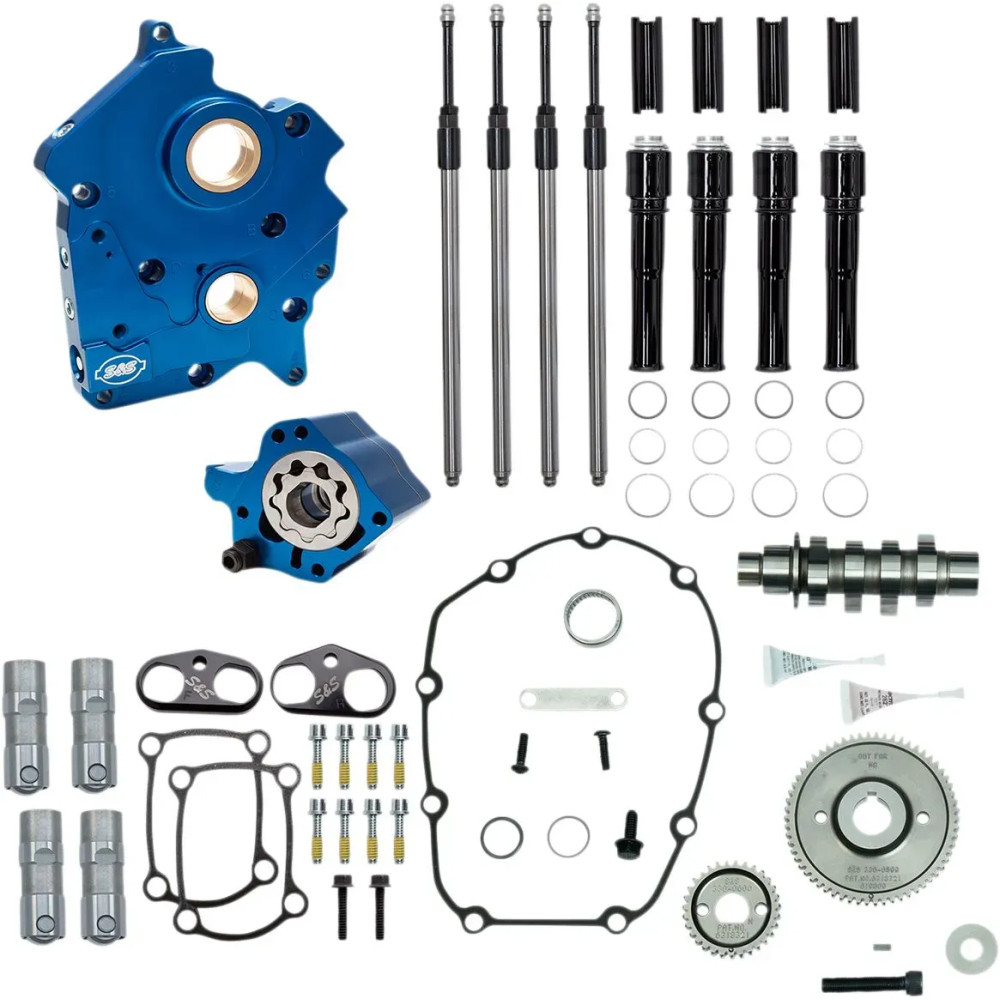

Cam chest kit for M8 models with VVT. Improves cam timing accuracy, replaces the stock cam chain tensioner, and includes matched components, billet aluminum oil pump and cam plate, pushrods, tappets, and outer drive gears.
Hurry! only 5 items left in stock.
€2,610.88
€3,414.21
Save €803.33
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

Designed for M8 models with VVT, this S&S CYCLE cam chest kit helps improve cam timing accuracy and eliminates the stock cam chain tensioner.

The kit includes matched components for fit, finish, and performance, plus outer drive gears.

Precision-machined billet aluminum oil pump and cam plate feature a blue anodized finish, removable passage plugs for servicing, independent scavenge sections, debris screens in both scavenge pickups, increased oil flow capacity, and an adjustable pressure relief valve that can be adjusted with the unit installed in the engine.

Also included are an in-cam-chest magnet to help keep debris out of the oil pump, S&S Quickee Pushrods with finished pushrod tubes, S&S premium tappets, and billet aluminum tappet cuffs with a hard-anodized black coating for added strength and improved tappet stability in high-lift and high-rpm situations.

Made in the USA.

: 0925-1666
In Stock

Data sheet

Type
Gear Drive
Units
Kit
Brand
S&S CYCLE
Application
Oil Cooled
Grind
465G
Exhaust Close
8,8° Front, 5,8° Rear
Exhaust Duration
218,9°
Exhaust Lift
0,462"
Exhaust Lift at TDC
0,109° Front, 0,098­° Rear
Exhaust Lobe Centerline
100,6° Front, 103,6° Rear
Exhaust Open
30,1° Front, 33,1° Rear
Intake Close
14,6° Front, 14,4° Rear
Intake Duration
197,2°
Intake Lift
0,462"
Intake Lift at TDC
0,087° Front, 0,088° Rear
Intake Lobe Centerline
96,0° Front, 95,8° Rear
Intake Open
2,6° Front, 2,8° Rear
