Cam Chest Kit for M8 — Gear Drive, Oil Cooled

S&S CYCLE Cam Chest Kit for M8 — Gear Drive, Oil Cooled

S&S CYCLE
0925-1668
310-1083B
Cam chest kit for M8 models with VVT. Gear-drive design improves cam timing accuracy and eliminates the stock cam chain tensioner.
Hurry! only 5 items left in stock.
€2,610.88
€3,414.21
Save €803.33
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

Designed for M8 models with VVT, this cam chest kit replaces the stock cam chain tensioner with a gear-drive setup for improved cam timing accuracy.

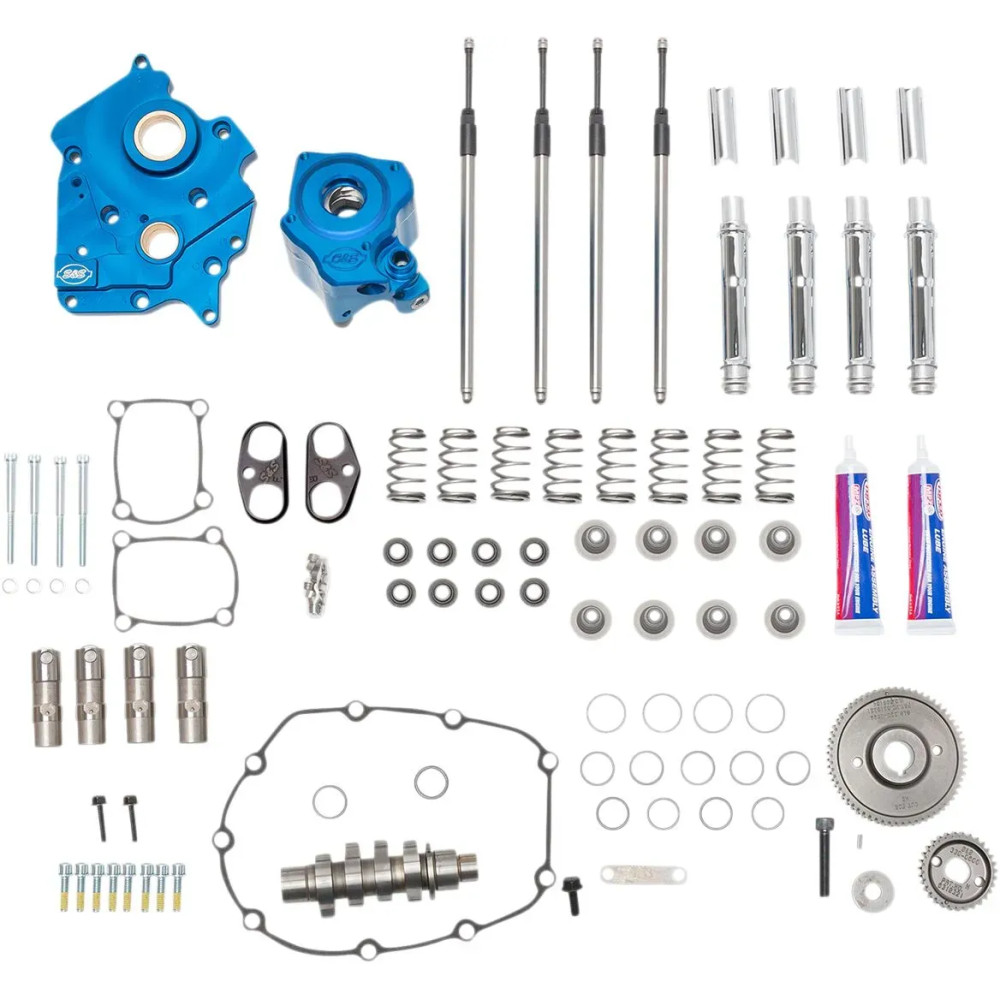

The matched kit includes a precision-machined billet aluminum oil pump and cam plate with a blue anodized finish, removable passage plugs for servicing, and an adjustable pressure relief valve that can be set with the unit installed.

Independent scavenge sections, debris screens in both pickups, increased feed and scavenge capacity, and a cam chest magnet help manage oil flow and capture debris. It also includes S&S Quickee Pushrods with finished pushrod tubes, S&S premium tappets, billet aluminum tappet cuffs with hard-anodized black coating, and outer drive gears.

Made in the USA.

: 0925-1668
In Stock

Data sheet

Type
Gear Drive
Units
Kit
Brand
S&S CYCLE
Application
Oil Cooled
Grind
550G
Exhaust Close
30,5° Front, 38,4° Rear
Exhaust Duration
273,1° Front, 277,8° Rear
Exhaust Lift
0,550"
Exhaust Lift at TDC
0,232" Front, 0,264" Rear
Exhaust Lobe Centerline
106,0° Front, 100,5° Rear
Exhaust Open
62,5° Front, 59,4° Rear
Intake Close
29,4° Front, 31,1° Rear
Intake Duration
218,9° Front, 214,2° Rear
Intake Lift
0,550"
Intake Lift at TDC
0,127" Front, 0,099" Rear
Intake Lobe Centerline
100,0° Front, 104,0° Rear
Intake Open
9,4° Front, 3,1° Rear
