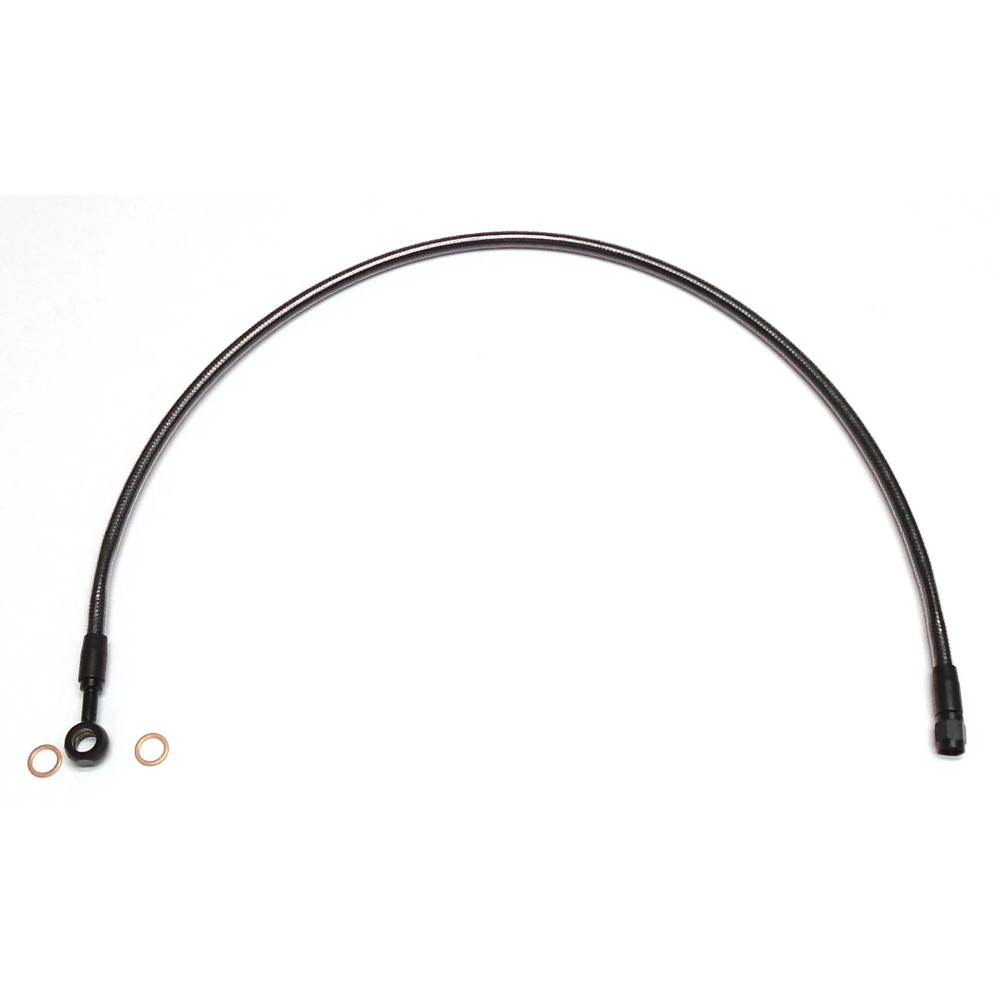

Designed for Harley-Davidson motorcycles equipped with ABS, this Alternate Length Designer Series front brake line kit delivers OEM routing and ABS compatibility. 🚦
- Compatible with stock and alternate length brake lines while following the same routing path as OEM lines.
- Brake kit includes a direct-fit lower assembly intended for use with alternative length upper lines to complete the connection.
- PTFE inner tubing and aramid fiber braid greatly reduce line expansion for consistent brake feel under load.
- Crystal clear outer jacket resists scuffing and will not discolor, while the braid weave matches related control cables and brake lines for a uniform appearance.
- Upper, lower, mid and adapter kits are sold separately so each installation can achieve a perfect fit.
- Assembled in the USA. 🇺🇸
Fitment and application notes:
- Single disc Dyna and Sportster models use two kits — one upper and one lower.
- Softail models typically utilize three kits (except '18+ dual disc), with the lower kit optional in many applications.
- Dual disc Touring models use three kits: upper, mid and lower; Trike models use two kits — upper and mid; no lower is available for Trike configurations.
- A Designer mid-line and upper line are required for Touring and Trike models with ABS to complete routing from the master cylinder to the ABS controller.
- Non-stock applications require measuring upper brake line length and banjo angle to ensure correct fitment.
- ABS-specific upper and lower kits are required to maintain anti-lock braking capability; ABS hoses are identified with the letters "ABS" printed on the hose.
Installation tip: measure using your stock master cylinder brake line as a guide and follow model-specific instructions for '18+ Softail adapter scenarios. 🔧
