Cam or Piston Bushing Installer Drill Jig — Black

Jims Cam or Piston Bushing Installer Drill Jig — Black

Fits: Model K 1952-1956 · Big Twin 1937-1948 · Sportster 1958-1966, 1968-1969, 1971 · Buell (8 models)

JIMS
DS-196101
1017-37TB

Installs bushings and drills dowel pin holes to factory spec; includes #31 HSS bit; made in USA.

Our price €93.02
RRP: €112.97RRP = manufacturer's recommended retail price
VAT included
Currently unavailable See available alternatives below

Available alternatives

Description

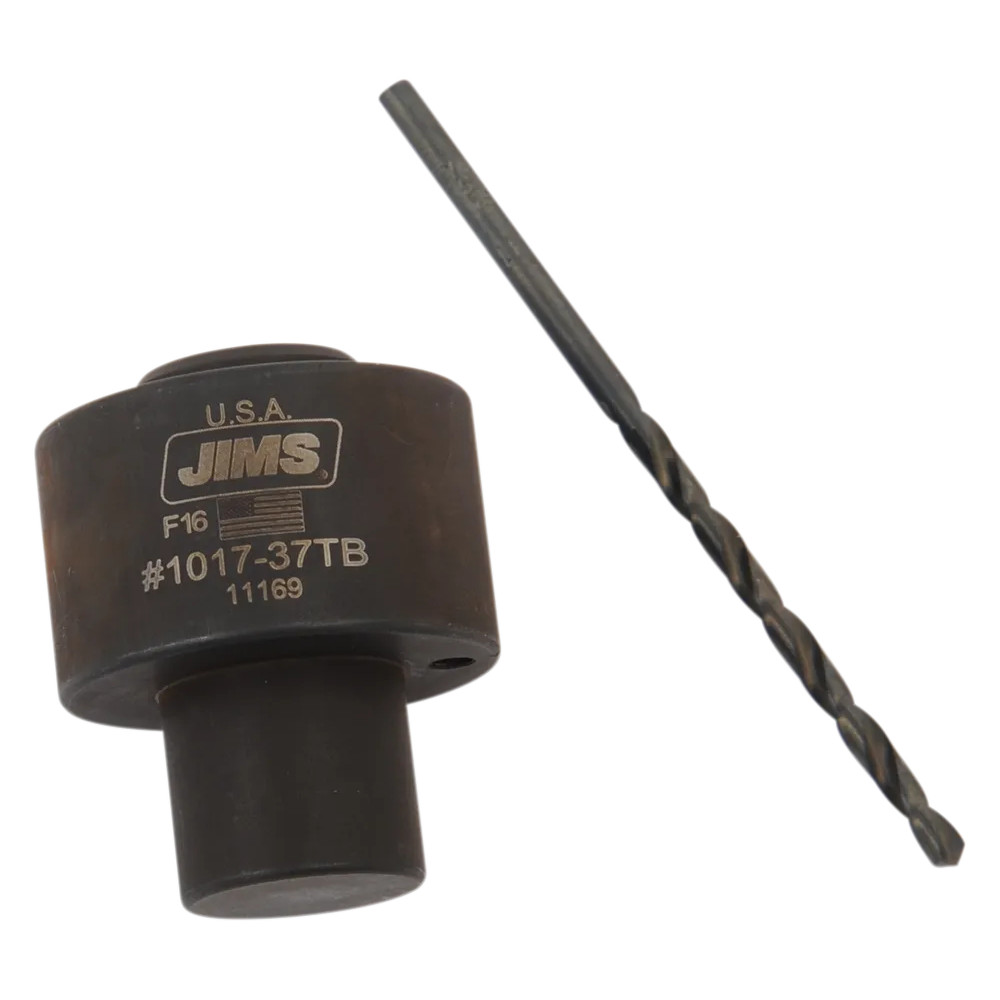

Precision jig for installing bushings and drilling dowel pin holes to factory specification.

  • Use to install bushing and drill dowel pin hole to factory specification
  • #31 jobber length HSS drill bit included with jigs
  • Use staking dowel pin
  • Made in the U.S.A.
