Cam or Piston Bushing Installer Drill Jig — Cam, Black

JIMS Cam or Piston Bushing Installer Drill Jig — Cam, Black – 70-86 Big Twin, 80, 83-98 Touring, 85-99 Softail, 91-98 Dyna, 82-94 FXR

JIMS
DS-196099
1012-70TB
Installs bushings and drills dowel-pin holes to factory specs; includes #31 HSS jobber drill bit; made in the U.S.A.
Hurry! only 1 items left in stock.
€92.03
€120.37
Save €28.34
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

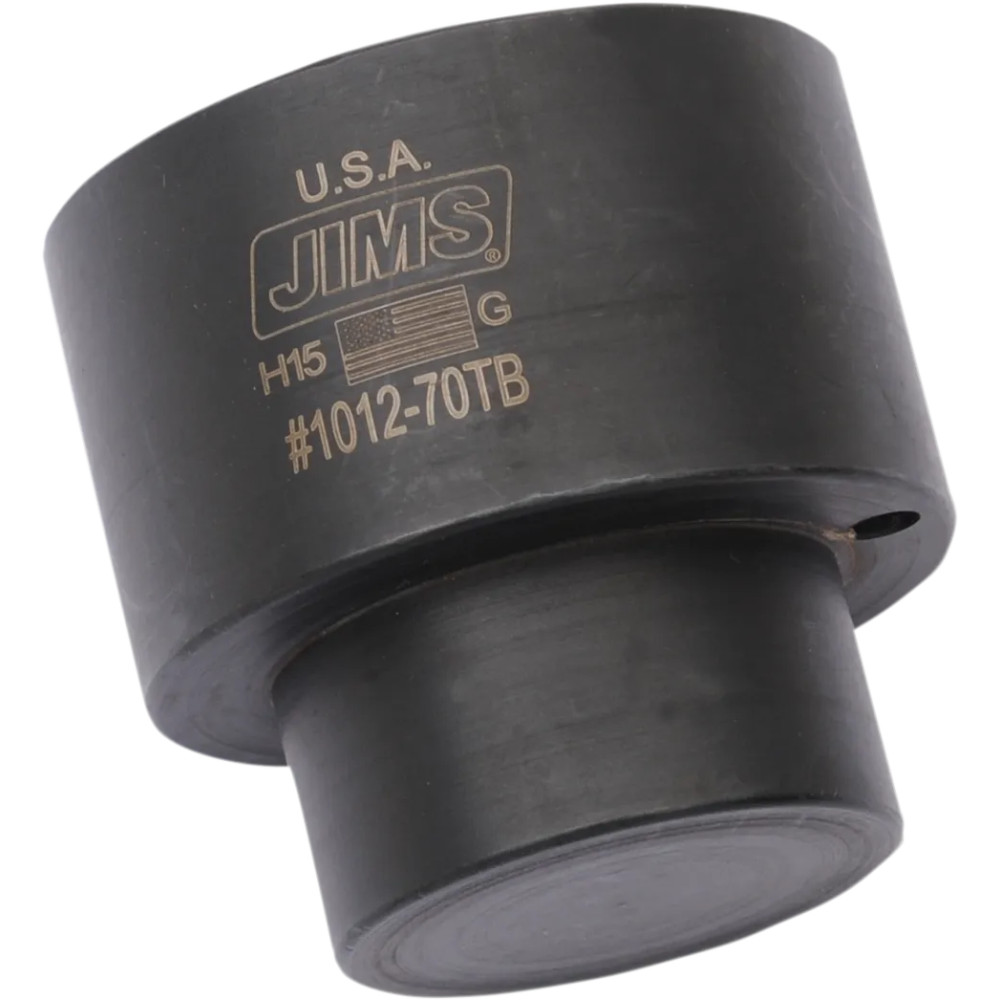

Precision drill jig designed to install bushings and drill dowel pin holes to factory specification. Ideal for clean, repeatable installations and accurate alignment. 🛠️

  • Use to install bushing and drill dowel pin hole to factory specification
  • #31 jobber length HSS drill bit included with jigs
  • Use staking dowel pin for permanent retention
  • Made in the U.S.A. 🇺🇸

This jig provides reliable guidance for the drill and bushing installer, helping maintain correct orientation and depth for consistent results.

: DS-196099
In Stock

Data sheet

Units
Each
Color/Finish
Black
Brand
JIMS
Application
Cam
Harley Family
Dyna
FXR
Softail
Touring
Vintage Big Twin
