Cam or Piston Bushing Installer Drill Jig — Pinion, black

JIMS Cam or Piston Bushing Installer Drill Jig — Pinion, black – 54-86 Big Twin, 80, 83-92 Touring, 85-92 Softail, 91-92 Dyna, 82-92 FXR

JIMS
DS-196100
1013-54TB

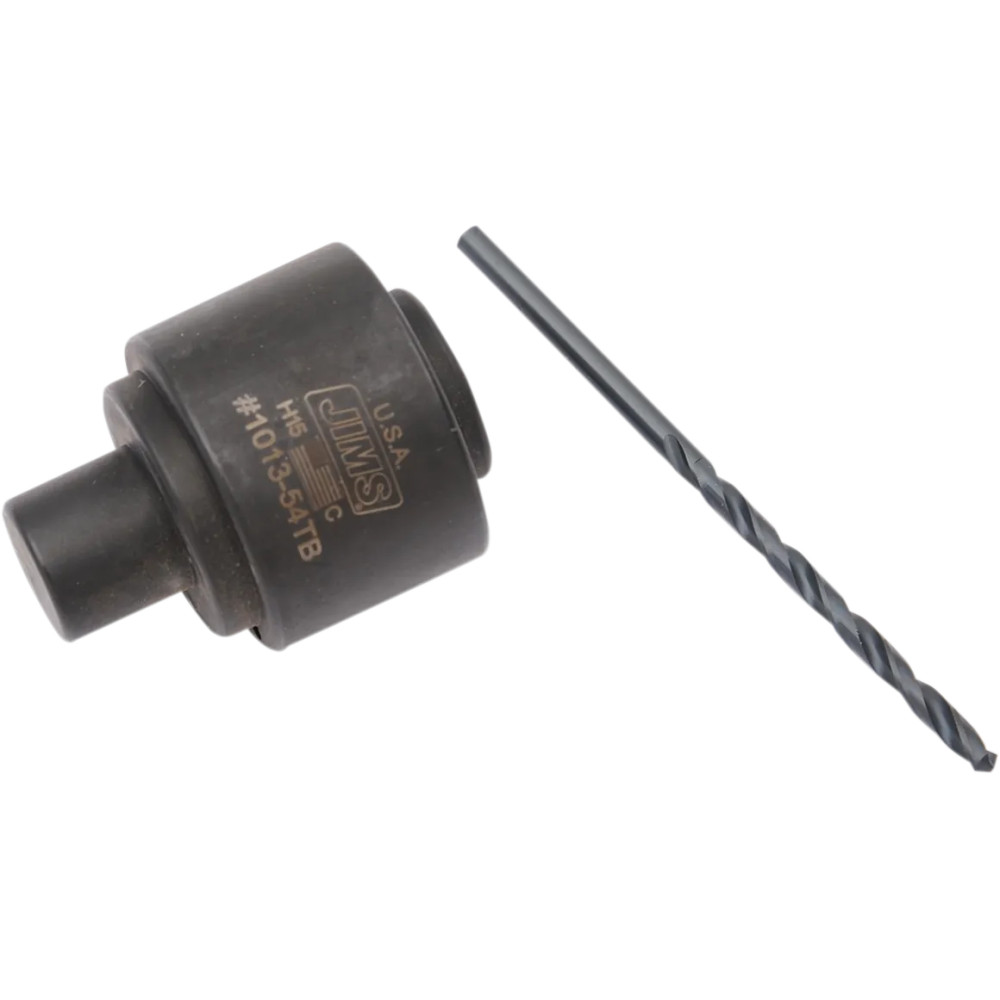

Drill jig to install bushings and drill dowel pin holes to factory specifications. Includes #31 HSS jobber drill bit. Made in the U.S.A.

Out of Stock
€89.53
€108.72
Save €19.19
VAT included
This product is currently unavailable.

Install bushings and drill dowel pin holes to factory specifications with this drill jig. 🔧

  • Use to install bushing and drill dowel pin hole to factory specification
  • #31 jobber length HSS drill bit included with jigs
  • Use staking dowel pin
  • Made in the U.S.A. 🇺🇸

Designed for precise alignment and repeatable results. Use proper safety equipment and secure the workpiece before drilling.

: DS-196100
Out of Stock

Data sheet

Units
Each
Color/Finish
Black
Brand
JIMS
Application
Pinion
Harley Family
Dyna
FXR
Softail
Touring
Vintage Big Twin
