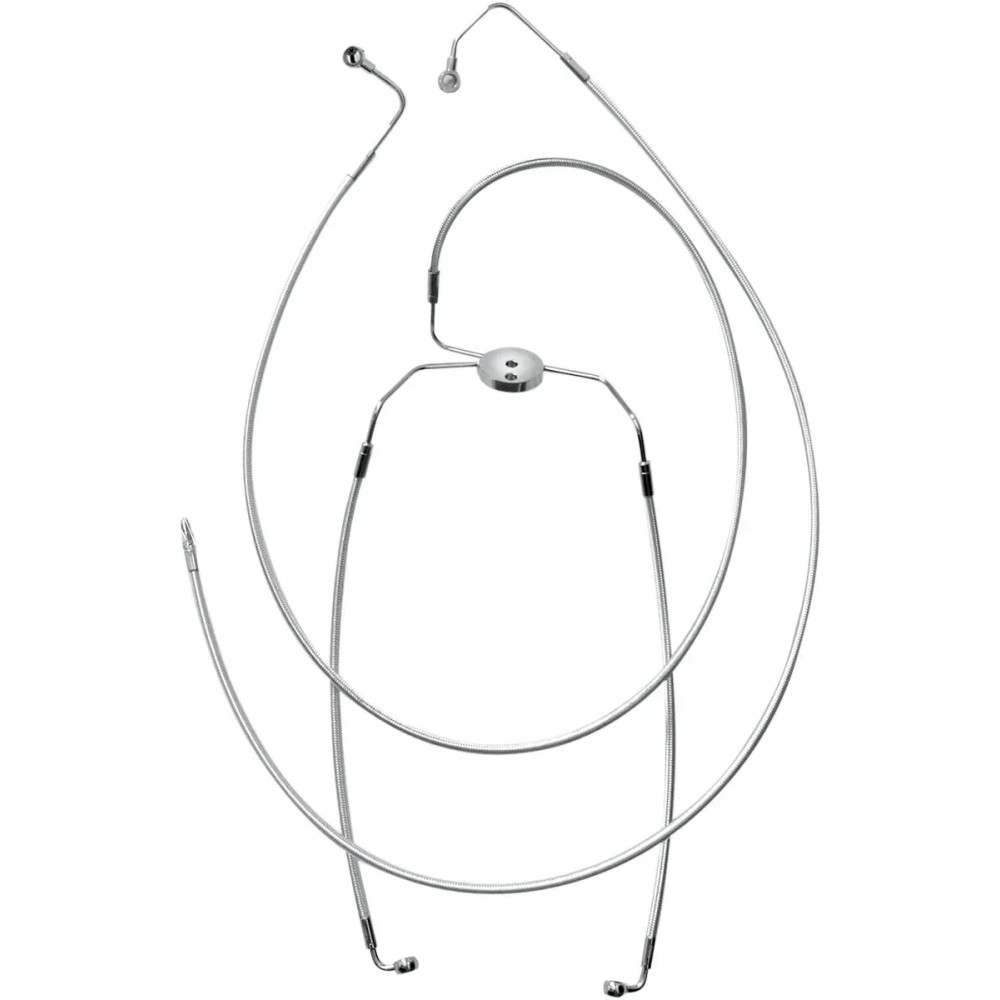

Alternate Length Designer Series ABS-Specific Front Brake Line Kit — 34" (86.5 cm), 7/16" 35° upper banjo fitting

Magnum Shielding Alternate Length Designer Series ABS-Specific Front Brake Line Kit — 34" (86.5 cm), 7/16" 35° upper banjo fitting

Fits: Dyna 2012-2014 · Softail 2011-2014 · CVO 2011-2014

MAGNUM SHIELDING
1741-3719
AS47934

ABS-specific alternate length front brake line kit engineered to follow OEM routing, with PTFE tubing, aramid reinforcement and Signature Magnum braid. Upper, lower and mid-line kits sold separately.

Our price €91.62
RRP: €111.25RRP = manufacturer's recommended retail price
VAT included
Ships from our US warehouse · 20–25 days

Add to Compare
Add to Wishlist

Description

Designed specifically for Harley-Davidson motorcycles equipped with ABS, this kit provides alternate-length brake lines routed to follow OEM paths while preserving anti-lock braking performance.

Constructed with PTFE inner tubing, aramid fiber reinforcement and premium Signature Magnum braids, the lines minimize expansion for consistent pedal feel.

The crystal clear outer jacket protects paint and chrome from scuffing while braid color and weave match MAGNUM control cables and brake lines for a factory-coordinated appearance.

Application-specific upper, lower and mid-line kits and adapters are sold separately to ensure correct routing and fitment for Softail, Dyna, Sportster, Touring and Trike models.

Assembled in the USA and engineered to connect properly with ABS controllers and master cylinders when the correct adapters are used.

Specifications

Model Designer Series
Mounting Position Front, Upper

Fitment

Model Years
Harley Davidson
FLD 1690 ABS (Dyna Switchback) uses 7/16" banjos 2012–2014
FLS 1690 ABS (Softail Slim) uses 7/16" banjos 2012–2014
FLSTC 1584 ABS (Heritage Softail Classic) uses 7/16" banjos 2011
FLSTC 1690 ABS (Heritage Softail Classic) uses 7/16" banjos 2012–2014
FLSTF 1584 ABS (Fat Boy) uses 7/16" banjos 2011
FLSTF 1690 ABS (Fat Boy) uses 7/16" banjos 2012–2014
FLSTFB 1584 ABS (Fat Boy Special) uses 7/16" banjos 2011
FLSTFB 1690 ABS (Fat Boy Lo) uses 7/16" banjos 2012
FLSTFB 1690 ABS (Fat Boy Special 110th Anniversary) uses 7/16" banjos 2013
FLSTFB 1690 ABS (Fat Boy Special) uses 7/16" banjos 2014
FLSTN 1584 ABS (Softail Deluxe) uses 7/16" banjos 2011
FLSTN 1690 ABS (Softail Deluxe) uses 7/16" banjos 2012–2014
FLSTNSE 1800 ABS (Softail Deluxe CVO) uses 7/16" banjos 2014
FLSTSE2 1800 ABS (Softail Convertible CVO) uses 7/16" banjos 2011
FLSTSE3 1800 ABS (Softail Convertible CVO) uses 7/16" banjos 2012
FXCWC 1584 ABS (Rocker C) uses 7/16" banjos 2011
FXDB 1584 ABS (Dyna Street Bob) uses 7/16" banjos 2012–2013
FXDB 1690 ABS (Dyna Street Bob) uses 7/16" banjos 2014
FXDBA 1584 ABS (Dyna Street Bob Limited) uses 7/16" banjos 2013
FXDBA 1690 ABS (Dyna Street Bob Limited) uses 7/16" banjos 2013
FXDBB 1690 ABS (Dyna Street Bob Special) uses 7/16" banjos 2014
FXDBP 1690 ABS (Dyna Street Bob Factory Custom) uses 7/16" banjos 2013–2014
FXDC 1584 ABS (Dyna Super Glide Custom) uses 7/16" banjos 2012–2013
FXDC 1690 ABS (Dyna Super Glide Custom) uses 7/16" banjos 2014
FXDF 1584 ABS (Dyna Fat Bob) uses 7/16" banjos 2012
FXDF 1690 ABS (Dyna Fat Bob) uses 7/16" banjos 2012–2014
FXDL 1690 ABS (Dyna Low Rider) uses 7/16" banjos 2014
FXDWG 1584 ABS (Dyna Wide Glide) uses 7/16" banjos 2012
FXDWG 1690 ABS (Dyna Wide Glide) uses 7/16" banjos 2012–2014
FXS 1584 ABS (Blackline) uses 7/16" banjos 2011–2012

+ 4 more models across 1 make in total.

Part numbers

Manufacturer part number AS47934
: 1741-3719
Ships from our US warehouse · 20–25 days

Data sheet

Type
Alternate Length
Units
Each
Color/Finish
Black, Black Pearl
Brand
MAGNUM SHIELDING
For Braking System
with ABS
Length
86.5 cm (34")
Upper Banjo Fitting
7/16" 35° Banjo Fitting
Material
Stainless Steel
Model Family
CVO
Dyna
Softail

Vehicle Fitments

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Dyna Switchback Dyna 2012 uses 7/16\" banjos
Harley Davidson Dyna Switchback Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Switchback Dyna 2014 uses 7/16\" banjos
Harley Davidson Softail Slim Softail 2012 uses 7/16\" banjos
Harley Davidson Softail Slim Softail 2013 uses 7/16\" banjos
Harley Davidson Softail Slim Softail 2014 uses 7/16\" banjos
Harley Davidson Heritage Softail Classic Softail 2011 uses 7/16\" banjos
Harley Davidson Heritage Softail Classic Softail 2012 uses 7/16\" banjos
Harley Davidson Heritage Softail Classic Softail 2013 uses 7/16\" banjos
Harley Davidson Heritage Softail Classic Softail 2014 uses 7/16\" banjos
Harley Davidson Fat Boy Softail 2011 uses 7/16\" banjos
Harley Davidson Fat Boy Softail 2012 uses 7/16\" banjos
Harley Davidson Fat Boy Softail 2013 uses 7/16\" banjos
Harley Davidson Fat Boy Softail 2014 uses 7/16\" banjos
Harley Davidson Fat Boy Special Softail 2011 uses 7/16\" banjos
Harley Davidson Fat Boy Lo Softail 2012 uses 7/16\" banjos
Harley Davidson Fat Boy Special 110th Anniversary Softail 2013 uses 7/16\" banjos
Harley Davidson Fat Boy Special Softail 2014 uses 7/16\" banjos
Harley Davidson Softail Deluxe Softail 2011 uses 7/16\" banjos
Harley Davidson Softail Deluxe Softail 2012 uses 7/16\" banjos
Harley Davidson Softail Deluxe Softail 2013 uses 7/16\" banjos
Harley Davidson Softail Deluxe Softail 2014 uses 7/16\" banjos
Harley Davidson Softail Deluxe CVO CVO 2014 uses 7/16\" banjos
Harley Davidson Softail Convertible CVO CVO 2011 uses 7/16\" banjos
Harley Davidson Softail Convertible CVO CVO 2012 uses 7/16\" banjos
Harley Davidson Rocker C Softail 2011 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Dyna 2012 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Dyna 2014 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Limited Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Limited Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Special Dyna 2014 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Factory Custom Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Street Bob Factory Custom Dyna 2014 uses 7/16\" banjos
Harley Davidson Dyna Super Glide Custom Dyna 2012 uses 7/16\" banjos
Harley Davidson Dyna Super Glide Custom Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Super Glide Custom Dyna 2014 uses 7/16\" banjos
Harley Davidson Dyna Fat Bob Dyna 2012 uses 7/16\" banjos
Harley Davidson Dyna Fat Bob Dyna 2012 uses 7/16\" banjos
Harley Davidson Dyna Fat Bob Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Fat Bob Dyna 2014 uses 7/16\" banjos
Harley Davidson Dyna Low Rider Dyna 2014 uses 7/16\" banjos
Harley Davidson Dyna Wide Glide Dyna 2012 uses 7/16\" banjos
Harley Davidson Dyna Wide Glide Dyna 2012 uses 7/16\" banjos
Harley Davidson Dyna Wide Glide Dyna 2013 uses 7/16\" banjos
Harley Davidson Dyna Wide Glide Dyna 2014 uses 7/16\" banjos
Harley Davidson Blackline Softail 2011 uses 7/16\" banjos
Harley Davidson Blackline Softail 2012 uses 7/16\" banjos
Harley Davidson Blackline Softail 2012 uses 7/16\" banjos
Harley Davidson Blackline Softail 2013 uses 7/16\" banjos
Harley Davidson Breakout Softail 2013 uses 7/16\" banjos
Harley Davidson Breakout Softail 2014 uses 7/16\" banjos
Harley Davidson Breakout CVO CVO 2013 uses 7/16\" banjos
Harley Davidson Breakout CVO CVO 2014 uses 7/16\" banjos
