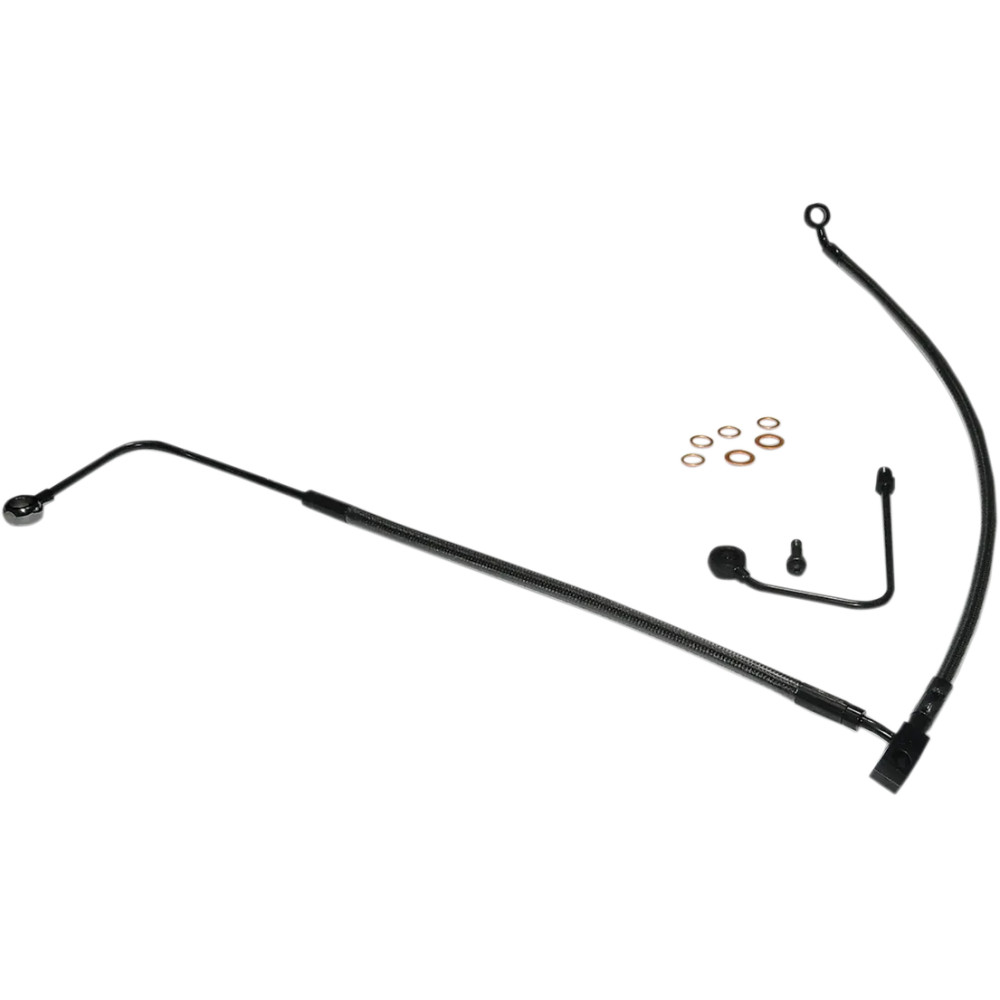

Designer Series Front Lower Brake Line Kit — with ABS, Black

MAGNUM SHIELDING Designer Series Front Lower Brake Line Kit — with ABS, Black – 11-17 Softail

MAGNUM SHIELDING
1741-3685
AS47001
Direct-fit lower assembly for '18+ dual disc Softails; AN-3 fittings for simple installation; compatible with ABS and non-ABS systems.
Hurry! only 3 items left in stock.
€189.40
€231.63
Save €42.23
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

Replace the stock lower brake line assembly on '18+ dual disc Softails without an adapter — AN-3 fittings allow the upper line to connect directly to the lower assembly. 🔧

Lines use PTFE inner tubing with DuPont™ Kevlar® aramid fiber reinforcement, premium braided covers and an outer PVC jacket to minimize expansion under pressure and preserve firm brake feel. ⚙️

Construction is engineered to meet Harley-Davidson ABS/non-ABS requirements for both stock and alternate length brake lines. The kit includes a direct-fit lower assembly designed to be used with alternative length upper lines for flexible fitment. 🇺🇸

AN-3 connections make installation and service straightforward. Assembled in the U.S.A. 🛠️

: 1741-3685
In Stock

Data sheet

Type
Standard
Units
Kit
Color/Finish
Black, Black Pearl
Brand
MAGNUM SHIELDING
Disc
Single
For Braking System
with ABS
Material
Stainless Steel
Harley Family
Softail

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Softail Slim Softail 2012 ABS
Harley Davidson Softail Slim Softail 2013 ABS
Harley Davidson Softail Slim Softail 2014 ABS
Harley Davidson Softail Slim Softail 2015 ABS
Harley Davidson Softail Slim Softail 2016 ABS
Harley Davidson Softail Slim Softail 2017 ABS
Harley Davidson Softail Slim S Softail 2016 ABS
Harley Davidson Softail Slim S Softail 2017 ABS
Harley Davidson Heritage Softail Classic Softail 2011 ABS
Harley Davidson Heritage Softail Classic Softail 2012 ABS
Harley Davidson Heritage Softail Classic Softail 2013 ABS
Harley Davidson Heritage Softail Classic Softail 2014 ABS
Harley Davidson Heritage Softail Classic Softail 2015 ABS
Harley Davidson Heritage Softail Classic Softail 2016 ABS
Harley Davidson Heritage Softail Classic Softail 2017 ABS
Harley Davidson Fat Boy Softail 2011 ABS
Harley Davidson Fat Boy Softail 2012 ABS
Harley Davidson Fat Boy Softail 2013 ABS
Harley Davidson Fat Boy Softail 2014 ABS
Harley Davidson Fat Boy Softail 2015 ABS
Harley Davidson Fat Boy Softail 2016 ABS
Harley Davidson Fat Boy Softail 2017 ABS
Harley Davidson Fat Boy Special Softail 2011 ABS
Harley Davidson Fat Boy Special Softail 2012 ABS
Harley Davidson Fat Boy Special Softail 2013 ABS
Harley Davidson Fat Boy Special Softail 2014 ABS
Harley Davidson Fat Boy Special Softail 2015 ABS
Harley Davidson Fat Boy Special Softail 2016 ABS
Harley Davidson Fat Boy Special Softail 2017 ABS
Harley Davidson Fat Boy S Softail 2016 ABS
Harley Davidson Fat Boy S Softail 2017 ABS
Harley Davidson Softail Deluxe Softail 2011 ABS
Harley Davidson Softail Deluxe Softail 2012 ABS
Harley Davidson Softail Deluxe Softail 2013 ABS
Harley Davidson Softail Deluxe Softail 2014 ABS
Harley Davidson Softail Deluxe Softail 2015 ABS
Harley Davidson Softail Deluxe Softail 2016 ABS
Harley Davidson Softail Deluxe Softail 2017 ABS
Harley Davidson Breakout Softail 2013 ABS
Harley Davidson Breakout Softail 2014 ABS
Harley Davidson Breakout Softail 2015 ABS
Harley Davidson Breakout Softail 2016 ABS
Harley Davidson Breakout Softail 2017 ABS
