Rear Axle Installation Guide Tool — JIMS, Rear Axle, Black

JIMS Rear Axle Installation Guide Tool — JIMS, Rear Axle, Black – 08-17 Dyna, 08-19 Softail, 08-19 Touring, 08-19 CVO, 09-19 Trike

JIMS
3811-0088
5820

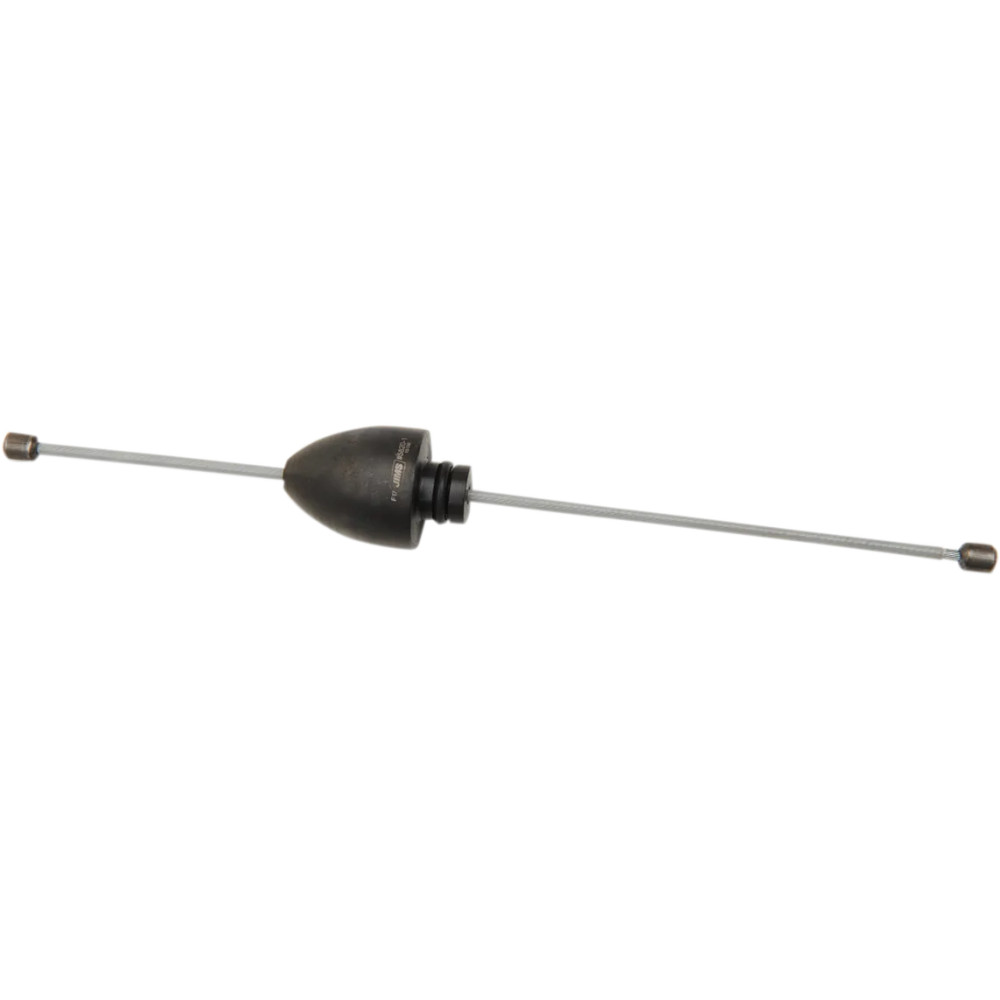

Tool for aligning rear wheel, caliper brackets, hubs and spacers on Big Twin models with hollow 1" (25 mm) standard axles. Made in the USA.

Hurry! only 8 items left in stock.
€64.42
€78.21
Save €13.79
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

Designed to locate and hold the rear wheel in precise alignment with the swingarm, caliper brackets, wheel hubs and spacers, this installation guide tool streamlines axle setup. 🛠️

Specifically made for Big Twin models with hollow 1" (25 mm) standard axles, the guide verifies axle centering, spacer placement and ensures consistent fitment during assembly. 🇺🇸

  • Aligns wheel with swingarm, caliper brackets, wheel hubs and spacers
  • Made in the USA
  • For Big Twin models with hollow 1" (25 mm) standard axles

Simple to use: insert the guide into the hollow axle, position the wheel and spacers, then remove the guide to complete installation. Compact and durable for shop or field use.

: 3811-0088
In Stock

Data sheet

Type
Rear Axle
Units
Each
Color/Finish
Black, Silver
Style
Standard
Brand
JIMS
Harley Family
CVO
Dyna
Softail
Touring
Trike
