Get complete tuning and diagnostic control with the Twin Scan Complete Kit 🔧📈. The system communicates with the ECM and BCM to read and clear diagnostic trouble codes, activates ABS solenoids for brake bleeding and testing, and provides real-time sensor display with built-in data logging.
- Complete tuning and diagnostic solution
- Communicates with ECM and BCM to read, then clear diagnostic trouble codes
- Activates ABS solenoids for proper brake bleeding and testing
- Ideal tuning aid for Screamin' Eagle Pro Super Tuner (SEST), Dynojet Power Commander (PC) and Twin Tec Twin Tuner
- Real-time display of engine sensors with built-in data logging for up to one hour
- Included PC software analyzes logged data and displays front and rear cylinder AFR with the required volumetric efficiency (VE) using the same RPM rows and TPS/MAP columns in the Super Tuner tables
- Two analog inputs (0–21 V or ±200 V) and two-channel oscilloscope capability for waveform display; analog inputs can be used for air/fuel ratio (AFR)

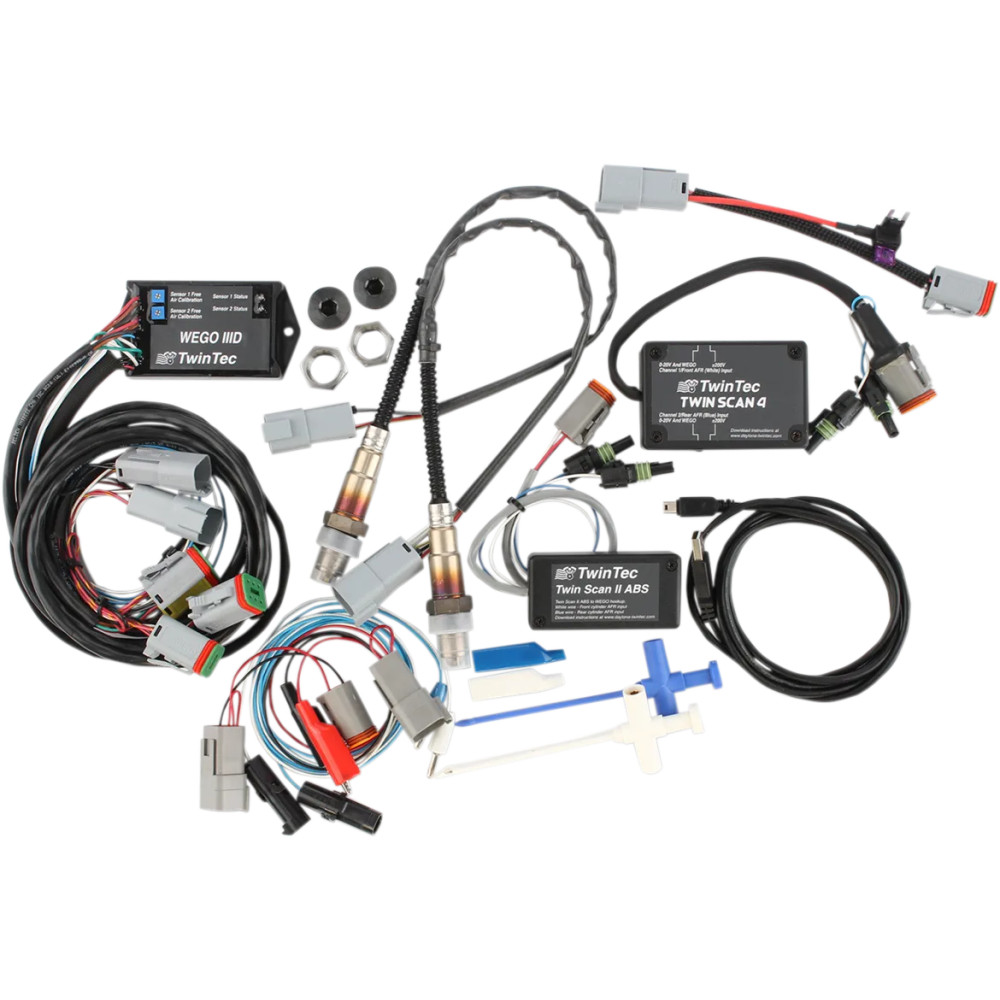

Complete kit includes:
- Twin Scan II ABS for models with J1850 data bus
- Twin Scan IV for models with CAN data bus with six position DLC connector
- WEGO IIID for tuning capability with both twin scan versions
- Twin Scan III probe kit for use with the scopemeter feature of the twin scan
- Two Bosch LSU 4.2 wide-band oxygen sensors
- Two 18 mm x 1.5 weld nuts
- Two 18 mm x 1.5 hex socket plugs
- USB cable and CD-ROM with software
Requires use of a PC with Windows 7, 8, 10 or 11 for display.
