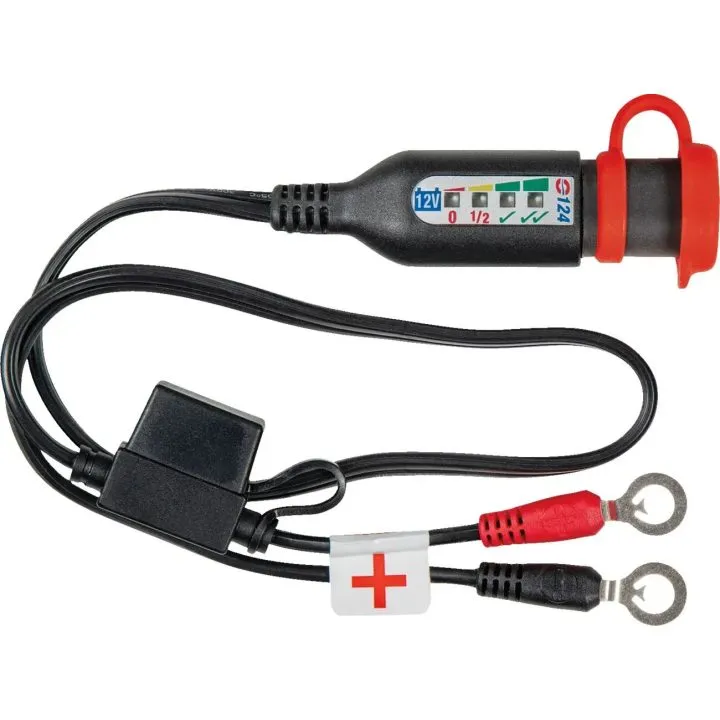

OptiMate™ Permanent Power Lead with Battery/Charge Status — 610 mm (24"), SAE plug, fused, 12 V

TECMATE OptiMate™ Permanent Power Lead with Battery/Charge Status — 610 mm (24"), SAE plug, fused, 12 V

TECMATE
3807-0317
O124
Monitor battery state of charge and test vehicle charging with two automatic modes and a four‑LED level display.
Hurry! only 32 items left in stock.
€17.05
€24.15
Save €7.10
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

The OptiMate™ Permanent Power Lead offers an easy way to monitor stored motorsport lead‑acid batteries and verify a vehicle charging system.

  • Two automatic modes: battery state of charge monitor (single LED flashing) and charging system test (arrow mode) 🔁
  • Four LEDs span the full to empty voltage range, including higher‑voltage AGM batteries; the 4th vv LED corresponds to ~12.7 V 🔋
  • Battery charge level: the LED matching the charge level blinks every 5 seconds for minimal long‑term draw <0.2 mA
  • Vehicle charge system test: arrow mode activates at a minimum of 13.5 V and indicates ideal charging at 14 V+
: 3807-0317
In Stock

Data sheet

Type
Battery, Level Indicator
Units
Each
Color/Finish
Black
Brand
TECMATE
Volts
12 V
Power Connection Type
SAE Plug, Fused, 1/4" Terminal Eyelet
