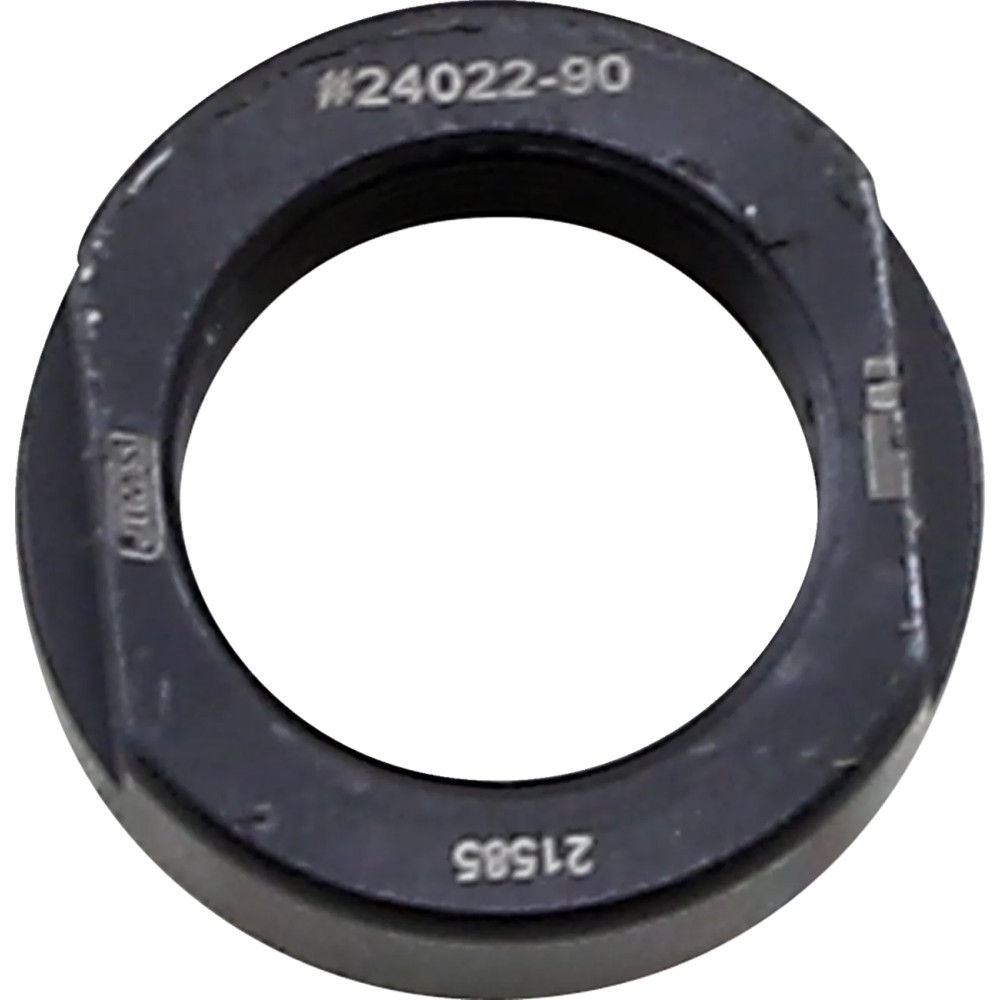

Gear-Side Pinion Shaft Nut — 5/8-24 left-hand threads

JIMS Gear-Side Pinion Shaft Nut — 5/8-24 left-hand threads – 90-92 Touring, 90-92 Softail, 91-92 Dyna, 90-92 FXR

JIMS
DS-198838
24022-90

Secures the pinion shaft on the gear side; replace if threads show wear or damage.

Out of Stock
€36.23
€44.00
Save €7.77
VAT included
This product is currently unavailable.

This nut secures the pinion shaft on the gear side of the transmission assembly.

Precision machined for reliable engagement and long-term wear resistance, it helps maintain proper gear alignment under load.

Inspect threads regularly and replace if you find wear, deformation, or thread damage to ensure consistent operation.

: DS-198838
Out of Stock

Data sheet

Type
Pinion Shaft
Units
Each
Brand
JIMS
Diameter - Thread Size
5/8-24
Harley Family
Dyna
FXR
Softail
Touring

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Electra Glide Sport Touring 1990
Harley Davidson Electra Glide Sport Touring 1991
Harley Davidson Electra Glide Sport Touring 1992
Harley Davidson Electra Glide Classic Touring 1990
Harley Davidson Electra Glide Classic Touring 1991
Harley Davidson Electra Glide Classic Touring 1992
Harley Davidson Electra Glide Ultra Classic Touring 1990
Harley Davidson Electra Glide Ultra Classic Touring 1991
Harley Davidson Electra Glide Ultra Classic Touring 1992
Harley Davidson Heritage Softail Softail 1990
Harley Davidson Heritage Softail Classic Softail 1990
Harley Davidson Heritage Softail Classic Softail 1991
Harley Davidson Heritage Softail Classic Softail 1992
Harley Davidson Fat Boy Softail 1990
Harley Davidson Fat Boy Softail 1991
Harley Davidson Fat Boy Softail 1992
Harley Davidson Tour Glide Classic Touring 1990
Harley Davidson Tour Glide Classic Touring 1991
Harley Davidson Tour Glide Ultra Classic Touring 1990
Harley Davidson Tour Glide Ultra Classic Touring 1991
Harley Davidson Tour Glide Ultra Classic Touring 1992
Harley Davidson Dyna Glide Sturgis Dyna 1991
Harley Davidson Dyna Glide Daytona Dyna 1992
Harley Davidson Dyna Glide Custom Dyna 1992
Harley Davidson Low Rider Custom FXR 1990
Harley Davidson Low Rider Custom FXR 1991
Harley Davidson Low Rider Custom FXR 1992
Harley Davidson Super Glide FXR 1990
Harley Davidson Super Glide FXR 1991
Harley Davidson Super Glide FXR 1992
Harley Davidson Low Rider FXR 1990
Harley Davidson Low Rider FXR 1991
Harley Davidson Low Rider FXR 1992
Harley Davidson Low Rider Convertible FXR 1990
Harley Davidson Low Rider Convertible FXR 1991
Harley Davidson Low Rider Convertible FXR 1992
Harley Davidson Low Rider Sport Edition (Fxrsl) FXR 1990
Harley Davidson Low Rider Sport Edition (Fxrsl) FXR 1991
Harley Davidson Low Rider Sport Edition (Fxrsl) FXR 1992
Harley Davidson Sport Glide FXR 1990
Harley Davidson Sport Glide FXR 1991
Harley Davidson Sport Glide FXR 1992
Harley Davidson Softail Softail 1990
Harley Davidson Softail Custom Softail 1990
Harley Davidson Softail Custom Softail 1991
Harley Davidson Softail Custom Softail 1992
Harley Davidson Softail Springer Softail 1990
Harley Davidson Softail Springer Softail 1991
Harley Davidson Softail Springer Softail 1992
