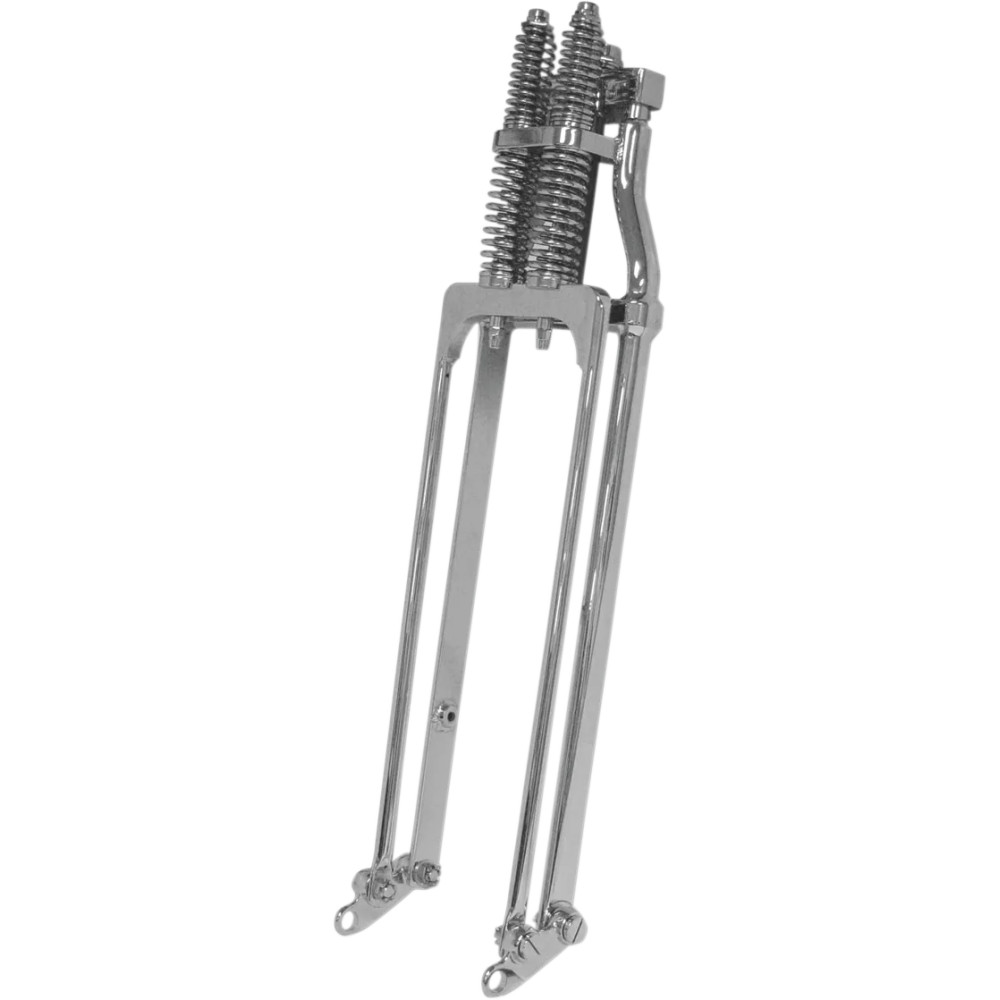

DRAG SPECIALTIES Custom Springer Forks — 31" length, 1" stem, 3/4" axle, Chrome – 84-93 FXR, 99, 07, 09, 13-14 CVO, 84-85 Big Twin, 84 Police, 85-86, 88, 90 Softail, 86-03 Sportster

Custom Springer front end is an economical alternative to shock-dampened Springer designs and arrives fully assembled with an in-line top bracket without a built-in rake.

The standard-length Springer measures 31" from the top bearing to the axle and is comparable to a standard-length FXST front end.

• 1" O.D. steering stem designed for Timken® type bearings
• Both rear legs are threaded to accept right- or left-side brakes
• 3/4" O.D. axle kit includes a brake-mount pivot with thrust washer and hub spacers (custom spacers may be required)
• Measures 9-1/4" between rockers; riser mounts on 4-3/4" centers, threaded 1/2"-20
• Requires a wheel compatible with a 3/4" O.D. axle; measured from the bottom of the top tree to the center of the axle
• Springers do not accept spotlight bars and have no fender mounts; these spring forks will not fit European models
