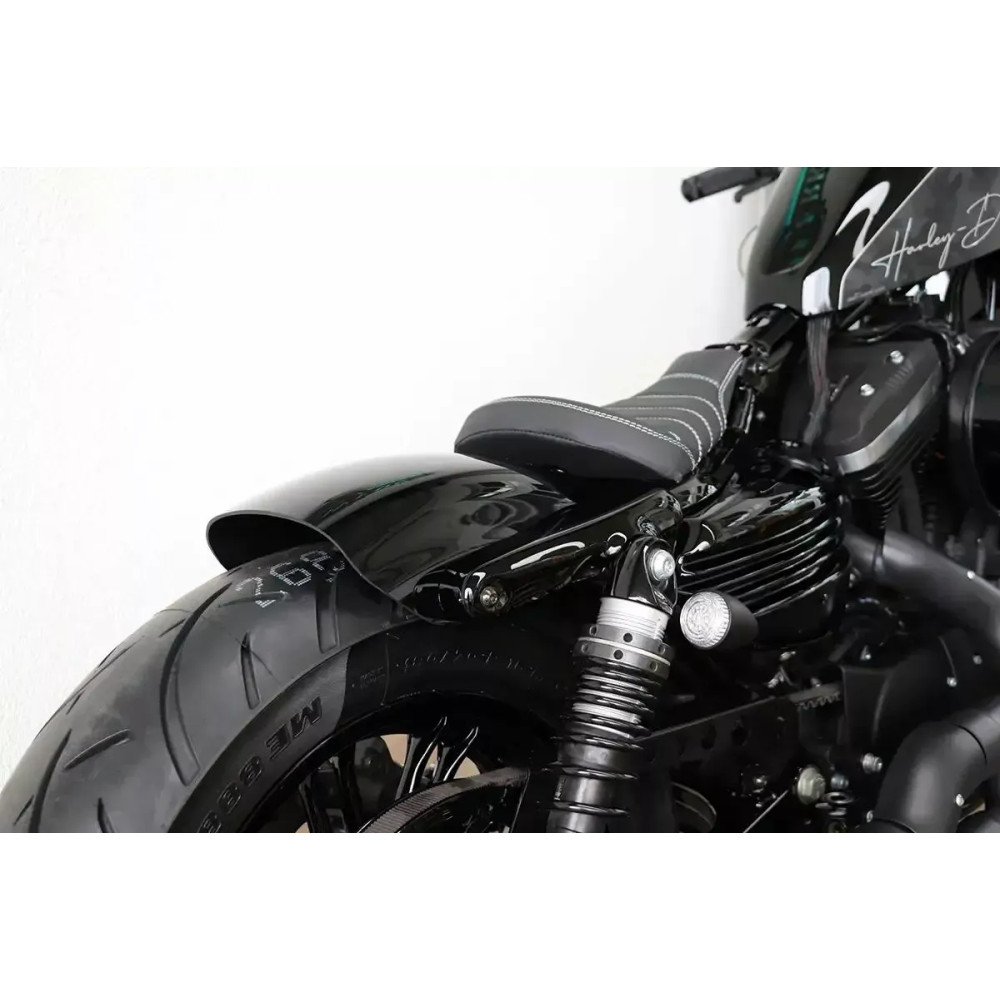

CULT WERK Rear Fender Low — HD-SPO114 – 04-14 Sportster

This precision-machined rear mudguard is produced on modern 5-axis CNC centers so it can replace the original mudguard with minimal modification. The top-quality finish ensures a precise fit and clean appearance.

After installation, check the spring travel because of the depth of the mudguard. If necessary, limit the spring travel using a spring travel limiter (article number: HD-UNI033) and consider stiffer damper settings to prevent contact.

• The original frame may need to be shortened and the original struts are no longer required; we recommend using the short mudguard struts (item number: HD-SPO006).
• The mudguard can only be used in combination with a very short single seat or with one of our compatible seats (item numbers: HD-SPO068, HD-SPO069 & HD-SPO113). Note: single seat is not possible from Sportster 2016.

All holes and millings are precision machined so the part drops in where the original component was fitted. Verify fitment and suspension travel during installation.
