Cam and Pinion Gear Gauge Pins — 0.108" gauge, Gray, Pair

Jims Cam and Pinion Gear Gauge Pins — 0.108" gauge, Gray, Pair

Fits: Touring 1990-1996 · Softail 1990-1999 · Dyna 1992-1996 · FXR 1990-1994 · CVO 1999-2000

JIMS
DS-197012
1111

Checks pinion gear pitch diameters. Refer to the service manual for sizing. Made in the U.S.A.

Our price €53.86
RRP: €65.39RRP = manufacturer's recommended retail price
VAT included
Ships from our US warehouse · 20–25 days

Add to Compare
Add to Wishlist

Description

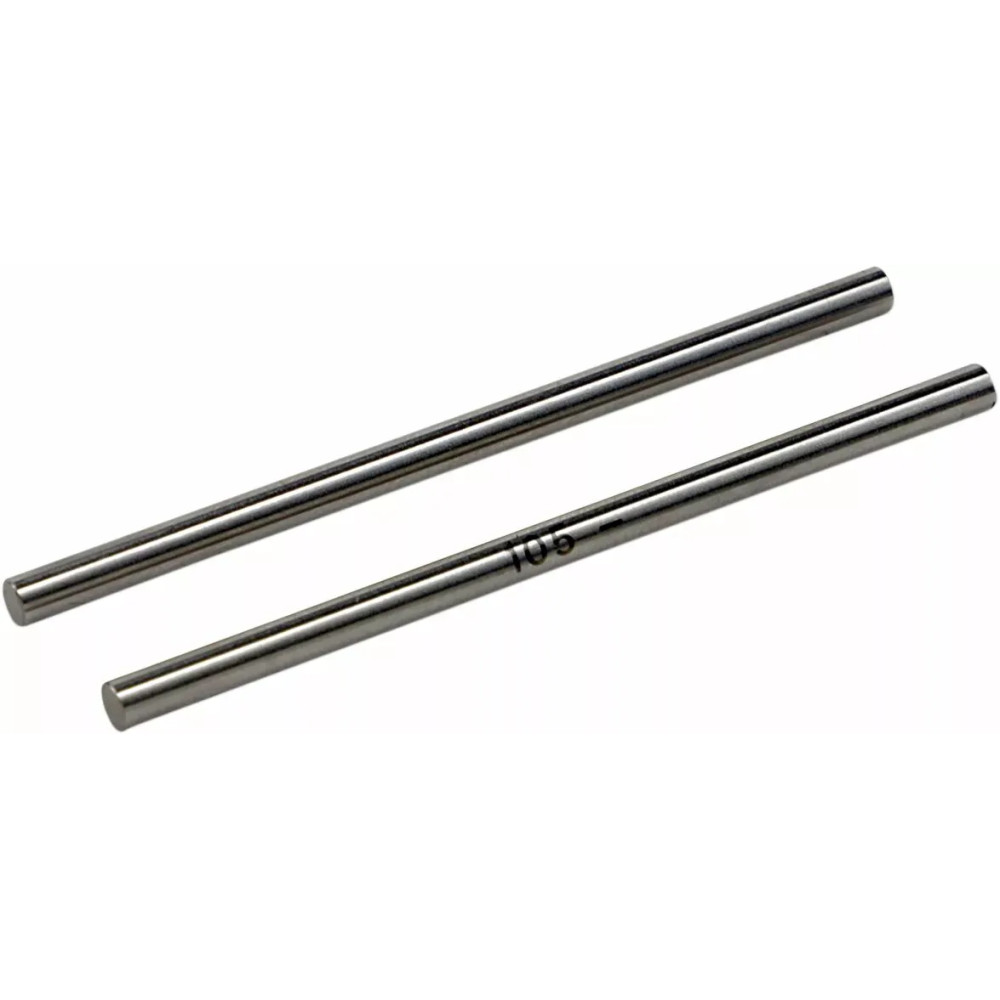

Use these calibration pins to check pinion gear pitch diameters for accurate gear setup.

Always consult the service manual for the correct sizing chart before measuring.

Made in the U.S.A.

Fitment

Model Years
Harley Davidson
FLHR 1340 (Road King) 1994–1996
FLHS 1340 (Electra Glide Sport) 1990–1993
FLHT 1340 (Electra Glide Standard) 1995–1996
FLHTC 1340 (Electra Glide Classic) 1990–1995
FLHTCI 1340 EFI (Electra Glide Classic) 1996
FLHTCU 1340 (Electra Glide Ultra Classic) 1990–1995
FLHTCUI 1340 EFI (Electra Glide Ultra Classic Special Anniversary Edition) 1995
FLHTCUI 1340 EFI (Electra Glide Ultra Classic) 1996
FLST 1340 (Heritage Softail) 1990
FLSTC 1340 (Heritage Softail Classic) 1990–1991
FLSTF 1340 (Fat Boy) 1990, 1992, 1994
FLSTN 1340 (Heritage Softail Special/Nostalgia) 1994–1996
FLSTS 1340 (Heritage Softail Springer) 1998
FLTC 1340 (Tour Glide Classic) 1990–1991
FLTCU 1340 (Tour Glide Ultra Classic) 1990–1996
FXD 1340 (Dyna Super Glide) 1995
FXDB 1340 (Dyna Glide Daytona) 1992
FXDC 1340 (Dyna Glide Custom) 1992
FXDL 1340 (Dyna Low Rider) 1993–1996
FXDS-CON 1340 (Dyna Super Glide Convertible) 1994–1996
FXDWG 1340 (Dyna Wide Glide) 1993, 1995
FXLR 1340 (Low Rider Custom) 1990–1994
FXR 1340 (Super Glide) 1990–1994
FXR2 1340 (Super Glide Screamin Eagle) 1999
FXR3 1340 (Super Glide Screamin Eagle) 1999
FXR4 1340 (Super Glide Screamin Eagle) 2000
FXRS 1340 (Low Rider) 1990–1992
FXRS CON. 1340 (Low Rider Convertible) 1990–1993
FXRS-SP 1340 (Low Rider Sport Edition (Fxrsl)) 1990–1993
FXRT 1340 (Sport Glide) 1990–1992

+ 3 more models across 1 make in total.

Part numbers

Manufacturer part number 1111
: DS-197012
Ships from our US warehouse · 20–25 days

Data sheet

Type
Pinion Gear Gauge
Units
Pair
Color/Finish
Gray
Brand
JIMS
Gauge
0.108"
Application
Powertrain
Measurement System
SAE
Model Family
CVO
Dyna
FXR
Softail
Touring

Vehicle Fitments
