Tappet Block Alignment Tool — Crankcase

Jims Tappet Block Alignment Tool — Crankcase

Fits: Big Twin 1976-1986 · Dyna 1999, 2001-2017 · Touring 1980, 1983-1990, 1995, 1997-2007, 2010-2011, 2014-2016 · Trike 2010, 2013 · Softail 1985-1986, 1996-2017 · FXR 1982-1992 · CVO 2000

JIMS
DS-197077
33443-84
Precision tool for aligning the tappet block oil hole and for Harley-Davidson® Twin Cam oil pump alignment.
Our price €34.80
RRP: €42.27RRP = manufacturer's recommended retail price
VAT included
In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

Description

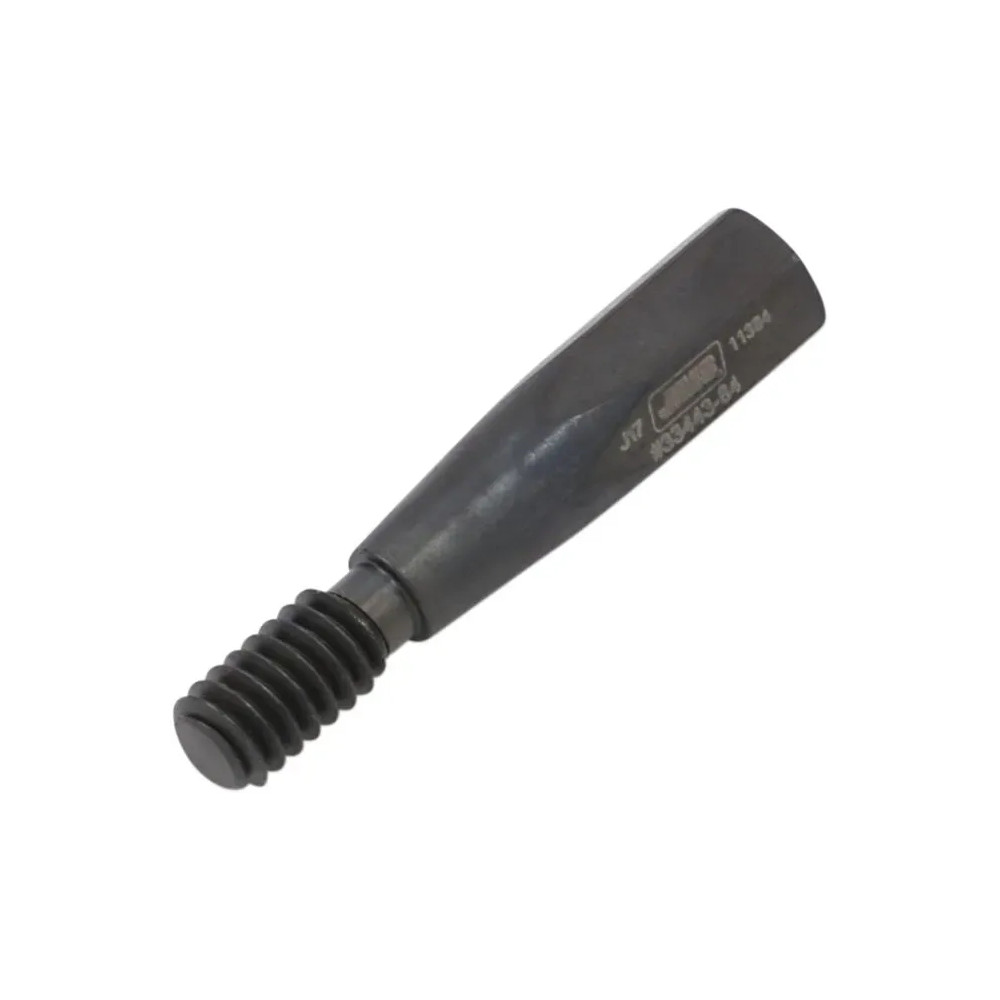

Precision alignment tool designed to position the oil hole from the crankcase to the tappet block for reliable oil flow.

Key applications:

  • Can also be used to align rocker box bases on Evolution head (requires two tools).
  • Also used in Harley-Davidson® Twin Cam oil pump alignment applications.
  • Used to align oil hole from crankcase to tappet block.
  • Made in the U.S.A.
