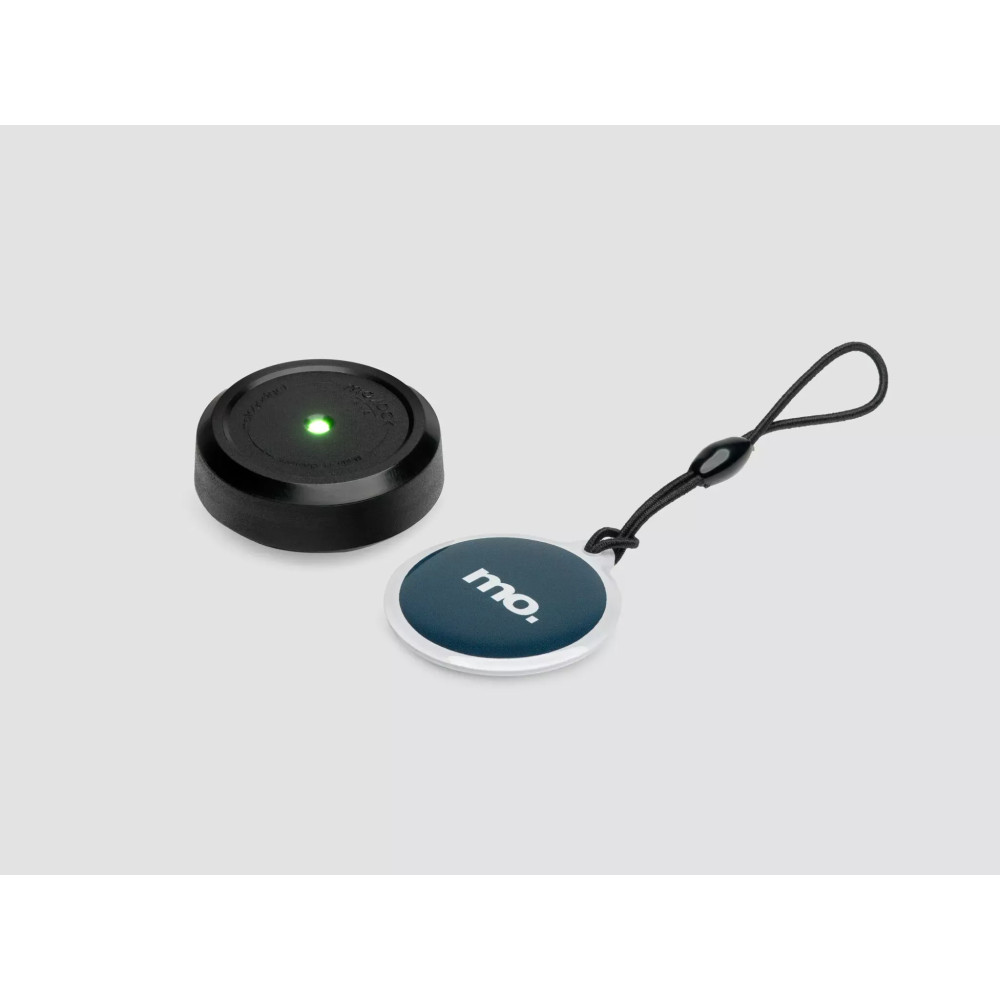

MOTOGADGET mo.lock NFC Lock — 8V–18V, 32 mm, M3 bushing

🔒 mo.lock NFC Lock is a compact digital ignition lock that replaces a mechanical ignition lock or its electrical switching function.

• 📳 Near-field communication provides a tamper-resistant alternative to radio remote controls.
• 🔧 Small size allows hidden mounting behind non-metallic parts for discreet installation.
• ⚡ Indirect switching via a 40A load relay prevents overloading or scorching of contacts.
• 🔋 The lock reduces quiescent current automatically in three stages when not in use.
• 💧 The unit is fully water and vibration resistant thanks to an overmolded non‑flammable thermoset.
• 📏 Contactless switching distance ≈ 4 cm, preventing unintended activation while ensuring reliable on/off switching.
• 🔴🟢🔵 Integrated RGB LED indicates lock status and guides key teaching.
• 🗝️ Keys require no battery, measure 30 mm in diameter and weigh 2 g; additional keys can be purchased and trained, each with a unique code.

Technical data:

• Mounting: 1 × M3 threaded bushing on rear side, plus bracket with 2 mounting holes.
• Operating temperature: -20°...+80°C.
• Height: 12 mm without plug contacts and housing.
• Weight: approx. 35 g.
• Operating voltage: 8V–18V.
• Diameter of transmitter/receiver on vehicle: 32 mm.
• Replaces part: 0521-0889.
