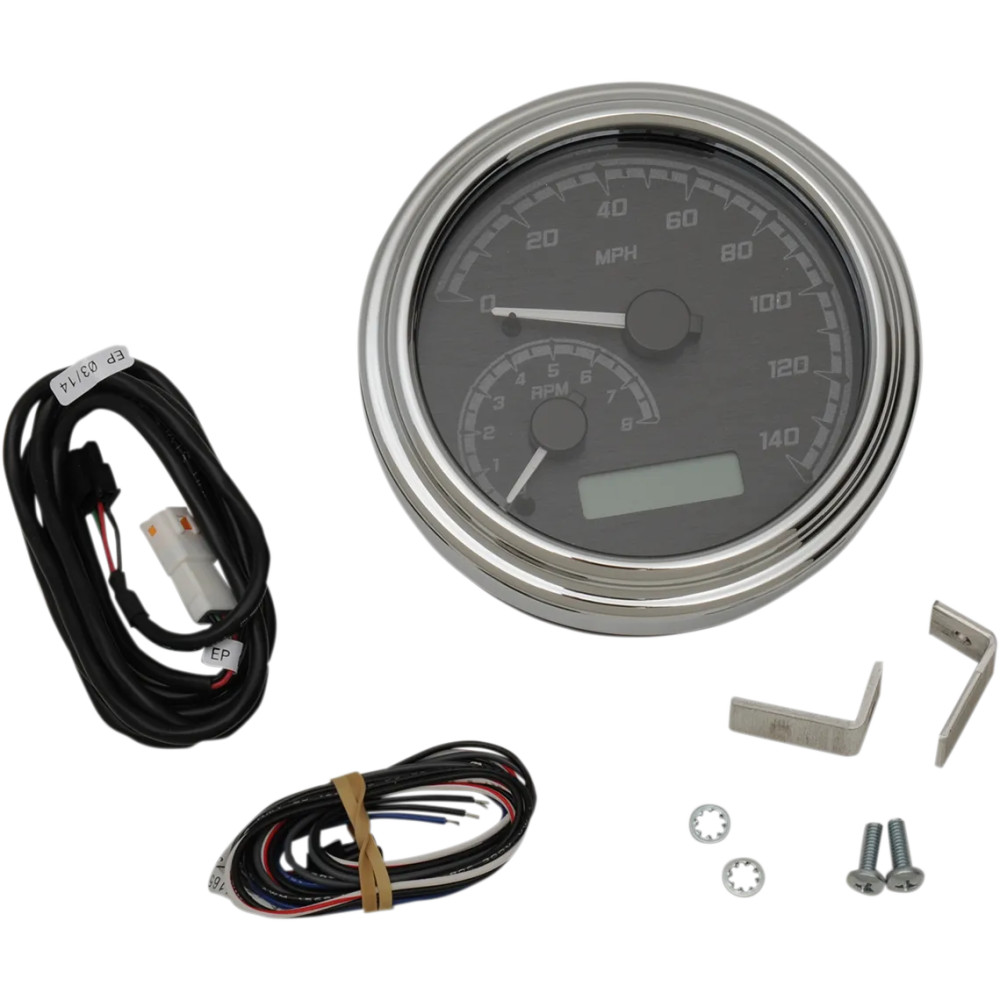

DAKOTA DIGITAL MVX Series Analog Gauge System — 4-5/8" OD, 0–140 mph, 8,000 rpm – 12-17 Dyna, 11-21 Softail, 13-17 CVO

The MVX Series Analog Gauge System combines speedometer, tachometer, odometer, dual resettable trip meters and a full complement of indicator lights in one stylish unit. 🏁

Depending on model year, the system offers multiple user-selectable colors for pointer, backlight and the LCD message center, and the tachometer features an adjustable shift point with a digital RPM readout.

Service and safety functions include a resettable miles-to-service countdown with warning, hour meter, 12-hour clock, voltage readout with low-voltage alert, and support for a cylinder head temperature sensor if the bike is equipped. Optional oil pressure senders are sold separately (part numbers 2212-0513 or DS-250019). ⚙️

Additional features include a multi-gear position indicator (compatible with 3- to 7-speed transmissions), security system indicator, automatic turn-signal cancelling, wait-to-start/check engine light behavior, and on-board performance calculations such as 0–60 and quarter-mile metrics.

Note: wiring installation is cut-and-splice and this is not a direct plug-in gauge.
