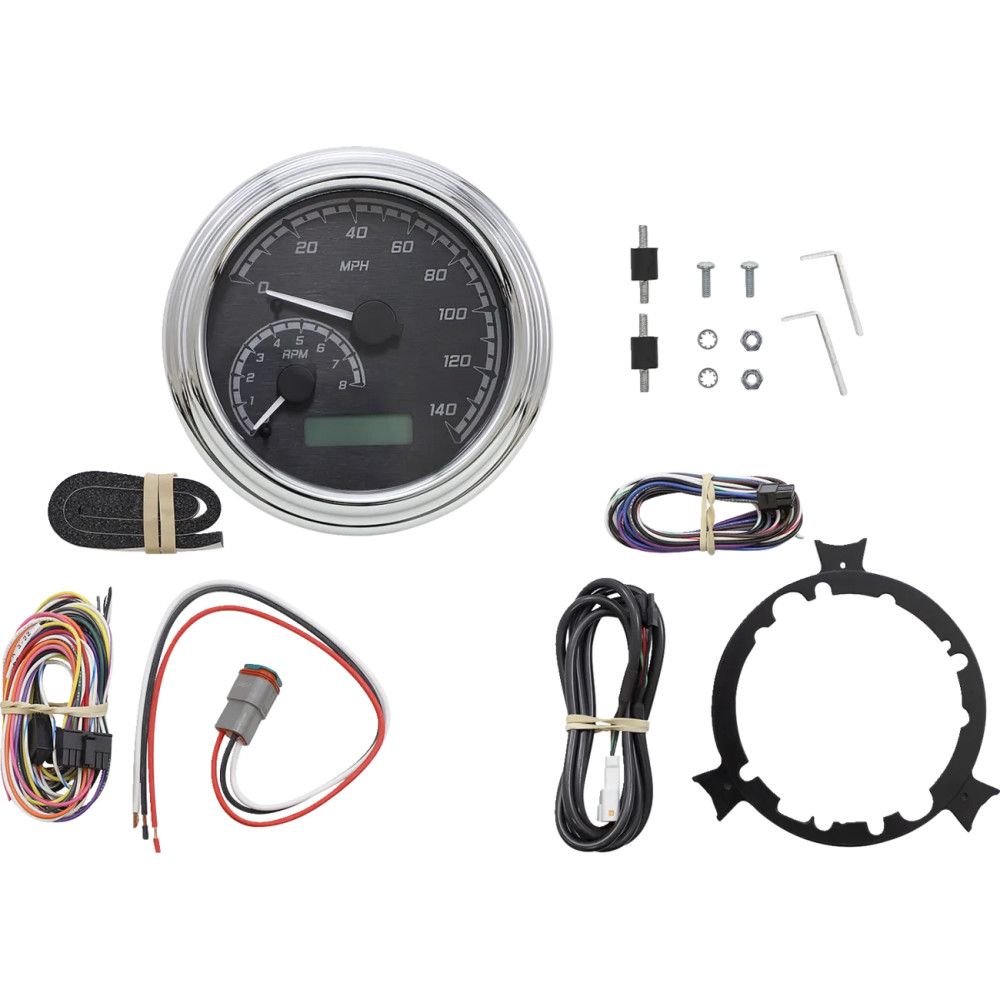

DAKOTA DIGITAL MVX Series Analog Gauge System — 11.8 cm (4-5/8"), 0–140 mph, 0–8,000 rpm – 96-03 Touring, 96-03 Softail, 96-03 Dyna, 01-02 CVO

The MVX Series Analog Gauge System combines a 140 mph speedometer, tachometer, odometer, dual resettable trip meters and a full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge. ⚙️

Systems for '99–'03 models offer seven user-selectable colors for pointer, backlight and LCD message center, while '11–'22 systems provide 31 color choices and a digital numeric tachometer readout with adjustable shift point.

Additional functions include resettable miles-to-service with warning, hour meter, 12-hour clock, voltage readout with low-voltage alert, cylinder head temperature support (with factory sender), and optional oil pressure sending unit compatibility.

The gauge supports a seven-speed gear position indicator (3–7 speed transmissions), security system indicator, automatic turn signal cancelling and a wait-to-start/check engine light function, plus performance calculations such as 0–60 time, 1/4 mile time and speed, and peak rpm recall. 🔧

Installation requires cut-and-splice wiring; this is not a direct plug-in gauge.
