XR Handlebar Installation Kit — 38–43 cm (15"–17"), ape hanger

MAGNUM SHIELDING XR Handlebar Installation Kit — 38–43 cm (15"–17"), ape hanger – 17-20 Touring, 17-19 CVO

MAGNUM SHIELDING
0662-0527
486852

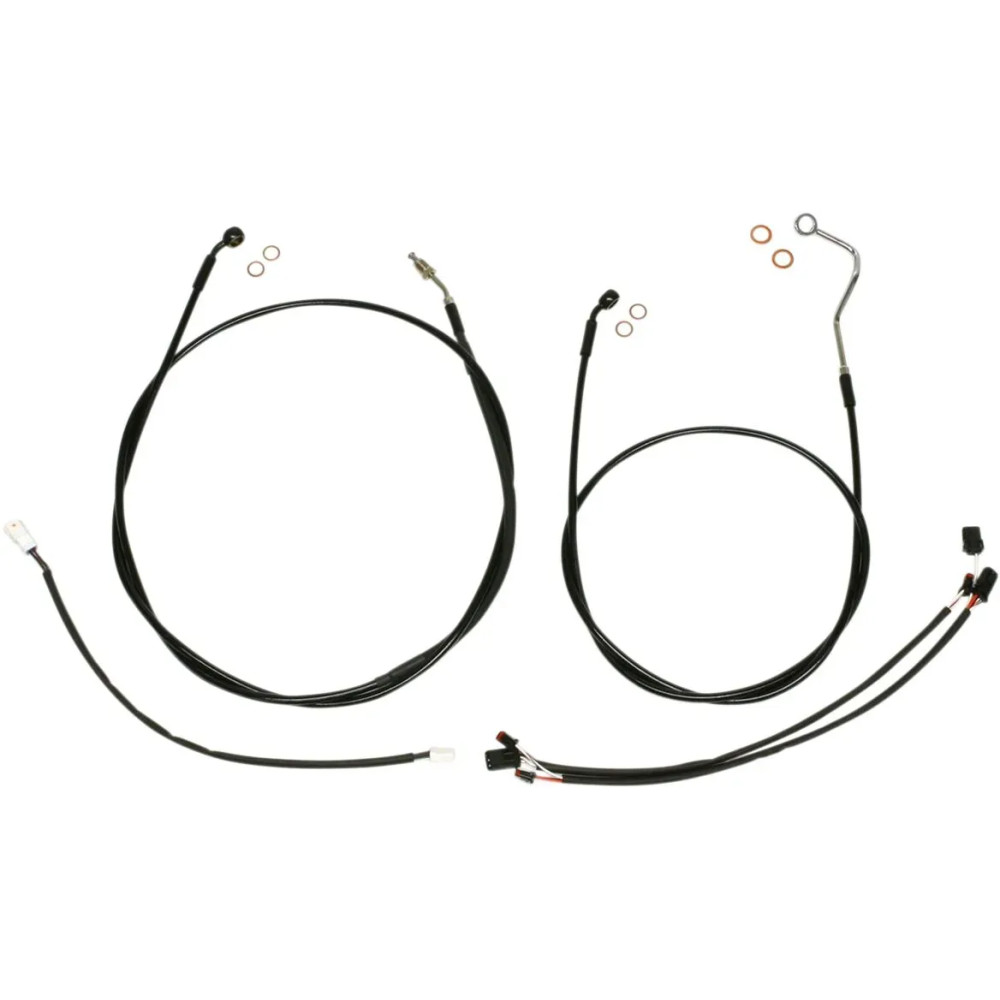

Complete XR handlebar installation kit with throttle and clutch options, XR DOT brake lines, copper crush washers, hardware, and fully terminated wiring extensions; designed for ape hanger handlebars and 2" risers.
Hurry! only 1 items left in stock.
€283.52
€346.74
Save €63.22
VAT included
local_shipping In stock, ships in 20-25 days

Add to Compare
Add to Wishlist

The Magnum XR Handlebar Installation Kit delivers a great fit and excellent quality at an economical price. 🔧

This complete kit includes throttle and idle cables or fully terminated throttle-by-wire extensions, clutch cable or hydraulic clutch line, XR DOT brake lines, copper crush washers, hardware, and fully terminated turn signal and switch wiring extensions. 🛠️

  • All fittings are highly polished before plating for a refined appearance.
  • Cables are low-effort, high-efficiency designs that meet or exceed OE specifications for fitment, construction, and endurance.
  • Brake lines use heavy-gauge stainless steel embedded in an abrasion-resistant nylon outer jacket for superior durability and responsive braking.

Kits that include manifolds use an all-brazed construction to ensure optimal OE fitment and appearance, and manifolds use -3 AN connections for easy installation. Brake lines comply with DOT FMVSS-106 specifications. The kit is based on using ape hanger style handlebars and 2" risers.

: 0662-0527
In Stock

Data sheet

Housing Material
Vinyl
Type
Brake Line, Clutch Line, Throttle Cable
Units
Each
Color/Finish
Black
Base Color
Black
Style
Alternate Length, Braided
Brand
MAGNUM SHIELDING
For Braking System
ABS, Uses Existing Lower Brake Line
Fits Handlebar Type/Bend
Ape Hanger
Fits Handlebar Height
38 cm - 43 cm (15" - 17")
Harley Family
CVO
Touring

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Electra Glide Standard 107 Touring 2019 ABS/Uses Existing OE Lower
Harley Davidson Electra Glide Standard 107 Touring 2020 ABS/Uses Existing OE Lower
Harley Davidson Electra Glide Ultra Classic 107 Touring 2017 ABS Upper
Harley Davidson Electra Glide Ultra Classic 107 Touring 2018 ABS Upper
Harley Davidson Electra Glide Ultra Classic 107 Touring 2019 ABS/Uses Existing OE Lower
Harley Davidson Electra Glide Ultra Limited 107 Touring 2017 ABS Upper
Harley Davidson Ultra Limited Shrine Edition 107 Touring 2018 ABS Upper
Harley Davidson Ultra Limited Shrine Edition 114 Touring 2019 ABS/Uses Existing OE Lower
Harley Davidson Ultra Limited Shrine Edition 114 Touring 2020 ABS/Uses Existing OE Lower
Harley Davidson Electra Glide Ultra Limited Low 107 Touring 2017 ABS Upper
Harley Davidson Ultra Limited Low 107 Touring 2018 ABS Upper
Harley Davidson Ultra Limited Low 114 Touring 2019 ABS/Uses Existing OE Lower
Harley Davidson Electra Glide Ultra Limited CVO 114 CVO 2017 ABS Upper
Harley Davidson Ultra Limited CVO 117 CVO 2019 ABS Upper
Harley Davidson Ultra Limited CVO Anniversary 117 Touring 2018 ABS Upper
Harley Davidson Street Glide 107 Touring 2017 ABS Upper
Harley Davidson Street Glide 107 Touring 2018 ABS Upper
Harley Davidson Street Glide 107 Touring 2019 ABS Upper
Harley Davidson Street Glide 107 Touring 2017 ABS Upper
Harley Davidson Street Glide 107 Touring 2018 ABS Upper
Harley Davidson Street Glide 107 Touring 2019 ABS/Uses Existing OE Lower
Harley Davidson Street Glide 107 Touring 2020 ABS/Uses Existing OE Lower
Harley Davidson Street Glide Special 107 Touring 2017 ABS Upper
Harley Davidson Street Glide Special 107 Touring 2018 ABS Upper
Harley Davidson Street Glide Special 114 Touring 2019 ABS/Uses Existing OE Lower
Harley Davidson Street Glide Special 114 Touring 2020 ABS/Uses Existing OE Lower
Harley Davidson Street Glide CVO 114 CVO 2017 ABS Upper
Harley Davidson Street Glide CVO 117 CVO 2018 ABS Upper
Harley Davidson Street Glide CVO 117 CVO 2019 ABS Upper
