XR Handlebar Installation Kit — Ape hanger, 12"–14", Black

MAGNUM SHIELDING XR Handlebar Installation Kit — Ape hanger, 12"–14", Black – 16-17 Softail

MAGNUM SHIELDING
0662-0523
486791
Complete XR handlebar installation kit with throttle, clutch and DOT-compliant brake lines; includes hardware and terminated wiring extensions.
Hurry! only 3 items left in stock.
€314.71
€384.91
Save €70.20
VAT included
local_shipping In stock, ships in 20-25 days

Add to Compare
Add to Wishlist

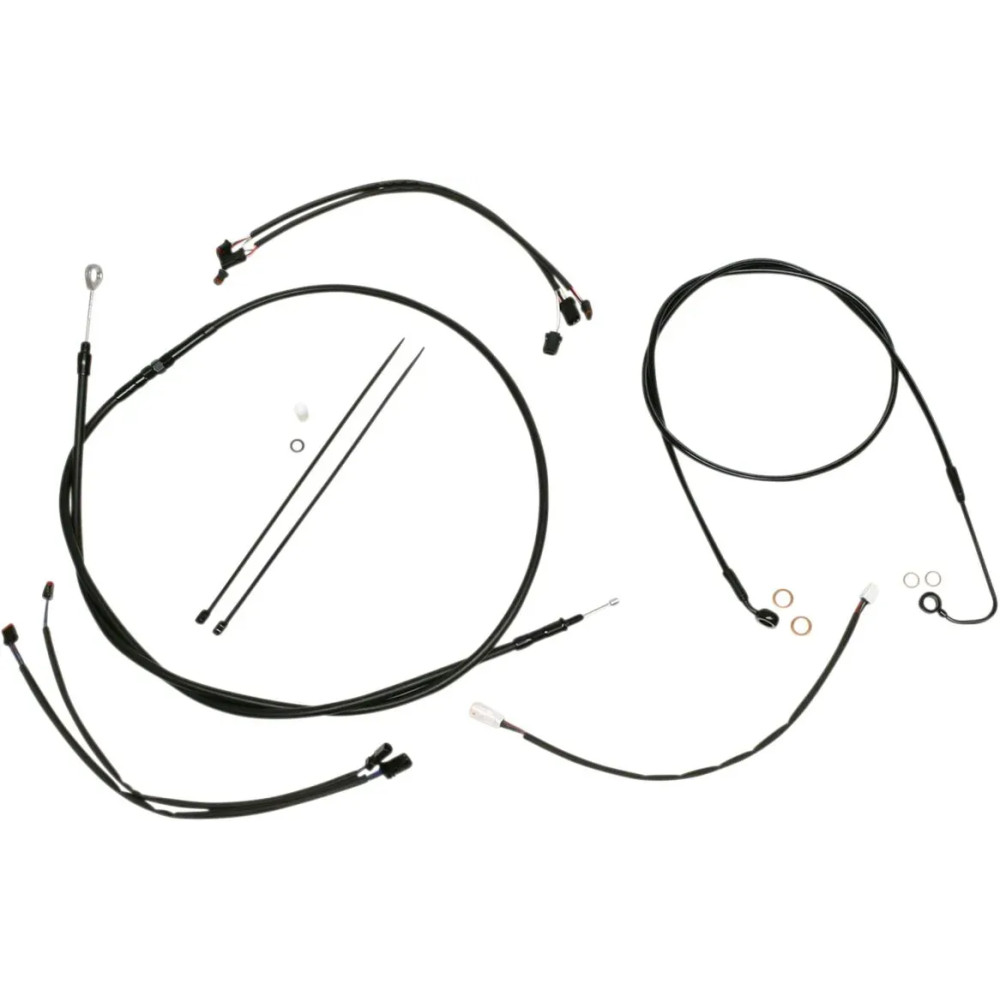

XR Handlebar Installation Kit

Built for a great fit and excellent value, this kit provides all the cables, lines, hardware and wiring extensions needed for a clean handlebar install. Designed to meet or exceed OE specifications for fitment, construction and endurance, the components offer low effort and high efficiency for reliable on-road performance. 🔧✨

  • Includes throttle and idle cables or fully terminated throttle-by-wire extensions, plus clutch cable or hydraulic clutch line.
  • XR DOT brake lines feature heavy-gauge stainless cores with abrasion-resistant nylon outer jackets for improved durability and braking response.
  • Copper crush washers, mounting hardware, and fully terminated turn signal and switch wiring extensions are included for straightforward installation.
  • All fittings are highly polished before plating; manifolds use an all-brazed construction and -3 AN connections for easy, precise fitment.
  • Brake lines comply with DOT FMVSS-106 specifications.

Everything in the kit is optimized for straightforward installation with riser-style handlebars and standard risers; the included brake components and fittings make routing and connection reliable and repeatable for safe riding.

: 0662-0523
In Stock

Data sheet

Housing Material
Vinyl
Type
Brake Line, Clutch Line, Throttle Cable
Units
Each
Color/Finish
Black
Base Color
Black
Style
Alternate Length, Braided
Brand
MAGNUM SHIELDING
For Braking System
ABS, Uses Existing Lower Brake Line
Fits Handlebar Type/Bend
Ape Hanger
Fits Handlebar Height
30.5 cm - 35.5 cm (12" - 14")
Harley Family
Softail

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Softail Slim Softail 2016 ABS Upper
Harley Davidson Softail Slim Softail 2017 ABS Upper
Harley Davidson Heritage Softail Classic Softail 2016 ABS Upper
Harley Davidson Heritage Softail Classic Softail 2017 ABS Upper
Harley Davidson Fat Boy Softail 2016 ABS Upper
Harley Davidson Fat Boy Softail 2017 ABS Upper
Harley Davidson Fat Boy Special Softail 2016 ABS Upper
Harley Davidson Fat Boy Special Softail 2017 ABS Upper
Harley Davidson Softail Deluxe Softail 2016 ABS Upper
Harley Davidson Softail Deluxe Softail 2017 ABS Upper
