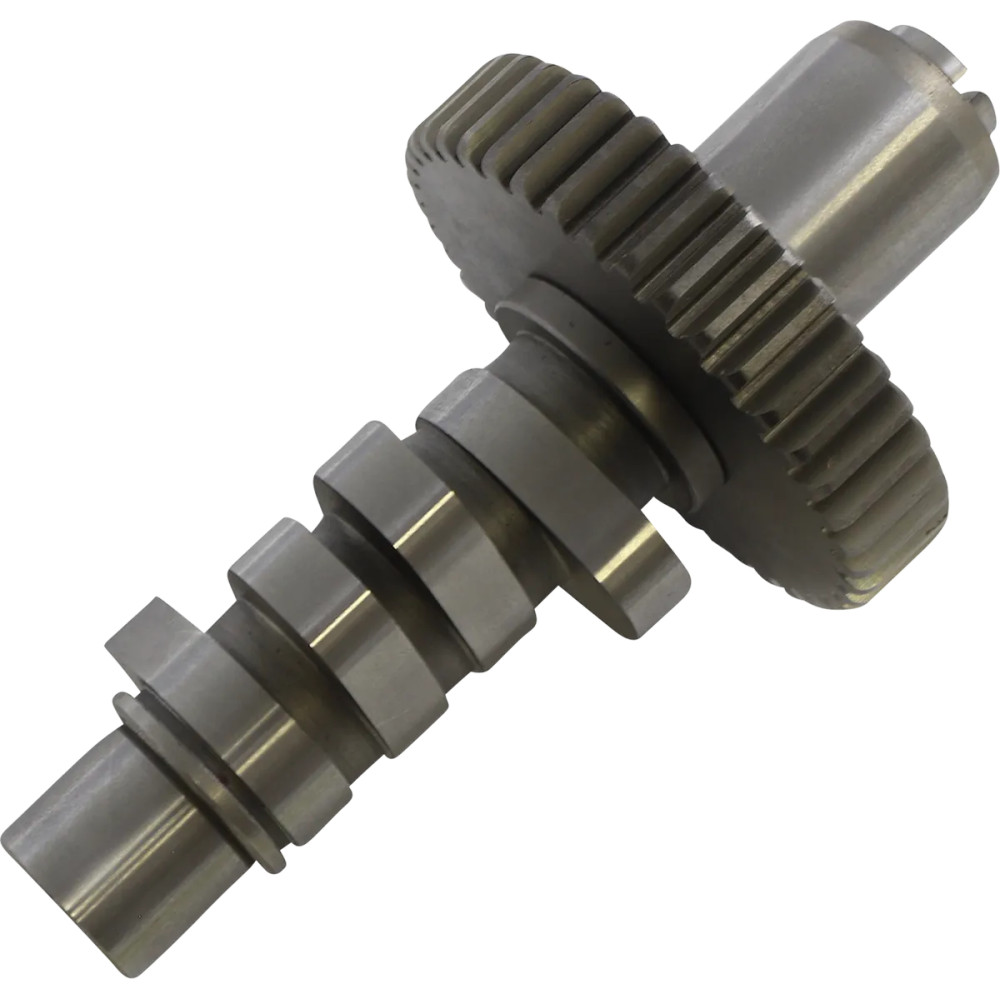

514 Camshaft — 84–93 cu in, 246° duration, 0.540" lift

S&S CYCLE 514 Camshaft — 84–93 cu in, 246° duration, 0.540" lift – 77-84 Big Twin, 79-84 Touring, 82-84 FXR, 84 Police

S&S CYCLE
DS-199188
33-5052
Dyno-, street- and track-tested 514 camshaft with hundreds of test hours; tuned for mid-range response (2500–5000 rpm). Recommend high-performance hydraulic or solid lifters; spring spacing and installation clearance checks required.
Hurry! only 1 items left in stock.
€251.53
€305.44
Save €53.91
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

This 514 camshaft is tested on the dyno, street and racetrack before being offered to the public. 🔧

With hundreds of test hours behind it, you get a cam optimized for strong mid-range response, particularly between 2500 and 5000 rpm. ⚙️

Recommend high-performance hydraulic or solid lifters; spring spacing is required. Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance. 🛠️

Made in the USA and developed to deliver proven performance and reliability for street and track use. 🇺🇸

: DS-199188
In Stock

Data sheet

Units
Each
Brand
S&S CYCLE
Application
Exhaust, Intake
Grind
514 Series
Exhaust Close
23°
Exhaust Duration
246°
Exhaust Lift
0,540" Panhead, 0,514" Shovelhead
Exhaust Lift at TDC
0,177" Panhead, 0,169" Shovelhead
Exhaust Open
43°
Intake Close
43°
Intake Duration
246°
Intake Lift
0,540" Panhead, 0,514" Shovelhead
Intake Lift at TDC
0,177" Panhead, 0,169" Shovelhead
Intake Open
23°
Harley Family
FXR
Touring
Vintage Big Twin

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Electra Glide Big Twin 1977
Harley Davidson Electra Glide Big Twin 1977
Harley Davidson Electra Glide Big Twin 1978
Harley Davidson Electra Glide Big Twin 1979
Harley Davidson Electra Glide Big Twin 1980
Harley Davidson Electra Glide Big Twin 1979
Harley Davidson Electra Glide Big Twin 1980
Harley Davidson Electra Glide Big Twin 1981
Harley Davidson Electra Glide Big Twin 1982
Harley Davidson Electra Glide Big Twin 1983
Harley Davidson Electra Glide Belt Drive Big Twin 1984
Harley Davidson Electra Glide Classic Big Twin 1979
Harley Davidson Electra Glide Big Twin 1980
Harley Davidson Electra Glide Classic Big Twin 1981
Harley Davidson Electra Glide Classic Big Twin 1982
Harley Davidson Electra Glide Classic Big Twin 1983
Harley Davidson Electra Glide Sport Touring 1979
Harley Davidson Electra Glide Sport Touring 1980
Harley Davidson Electra Glide Touring 1983
Harley Davidson Electra Glide Touring 1984
Harley Davidson Electra Glide Classic Touring 1984
Harley Davidson Tour Glide Touring 1980
Harley Davidson Tour Glide Touring 1981
Harley Davidson Tour Glide Touring 1982
Harley Davidson Tour Glide Touring 1983
Harley Davidson Tour Glide Classic Touring 1980
Harley Davidson Tour Glide Classic Touring 1981
Harley Davidson Tour Glide Classic Touring 1982
Harley Davidson Tour Glide Classic Touring 1983
Harley Davidson Tour Glide Classic Touring 1984
Harley Davidson Super Glide Big Twin 1977
Harley Davidson Super Glide Big Twin 1978
Harley Davidson Super Glide Big Twin 1979
Harley Davidson Sturgis Big Twin 1980
Harley Davidson Sturgis Big Twin 1981
Harley Davidson Sturgis Big Twin 1982
Harley Davidson Big Twin 1983
Harley Davidson Big Twin 1984
Harley Davidson Super Glide Big Twin 1977
Harley Davidson Super Glide Big Twin 1978
Harley Davidson Super Glide Big Twin 1979
Harley Davidson Super Glide Big Twin 1980
Harley Davidson Super Glide Big Twin 1981
Harley Davidson Super Glide Big Twin 1982
Harley Davidson Super Glide Big Twin 1983
Harley Davidson Super Glide Big Twin 1984
Harley Davidson Fat Bob Big Twin 1979
Harley Davidson Fat Bob Big Twin 1979
Harley Davidson Fat Bob Big Twin 1980
Harley Davidson Fat Bob Big Twin 1981
Harley Davidson Fat Bob Big Twin 1982
Harley Davidson Super Glide II FXR 1982
Harley Davidson Super Glide II FXR 1983
Harley Davidson Super Glide II FXR 1984
Harley Davidson Disc Glide Big Twin 1984
Harley Davidson Sport Glide Police Police 1984
Harley Davidson Low Glide FXR 1984
Harley Davidson Super Glide II FXR 1982
Harley Davidson Sport Glide FXR 1984
Harley Davidson Low Rider Big Twin 1977
Harley Davidson Low Rider Big Twin 1978
Harley Davidson Low Rider Big Twin 1979
Harley Davidson Low Rider Big Twin 1979
Harley Davidson Low Rider Big Twin 1980
Harley Davidson Low Rider Big Twin 1981
Harley Davidson Low Rider Big Twin 1982
Harley Davidson Low Rider Big Twin 1983
Harley Davidson Low Rider Big Twin 1984
Harley Davidson Wide Glide Big Twin 1980
Harley Davidson Wide Glide Big Twin 1981
Harley Davidson Wide Glide Big Twin 1982
Harley Davidson Wide Glide Big Twin 1983
Harley Davidson Wide Glide Big Twin 1984
