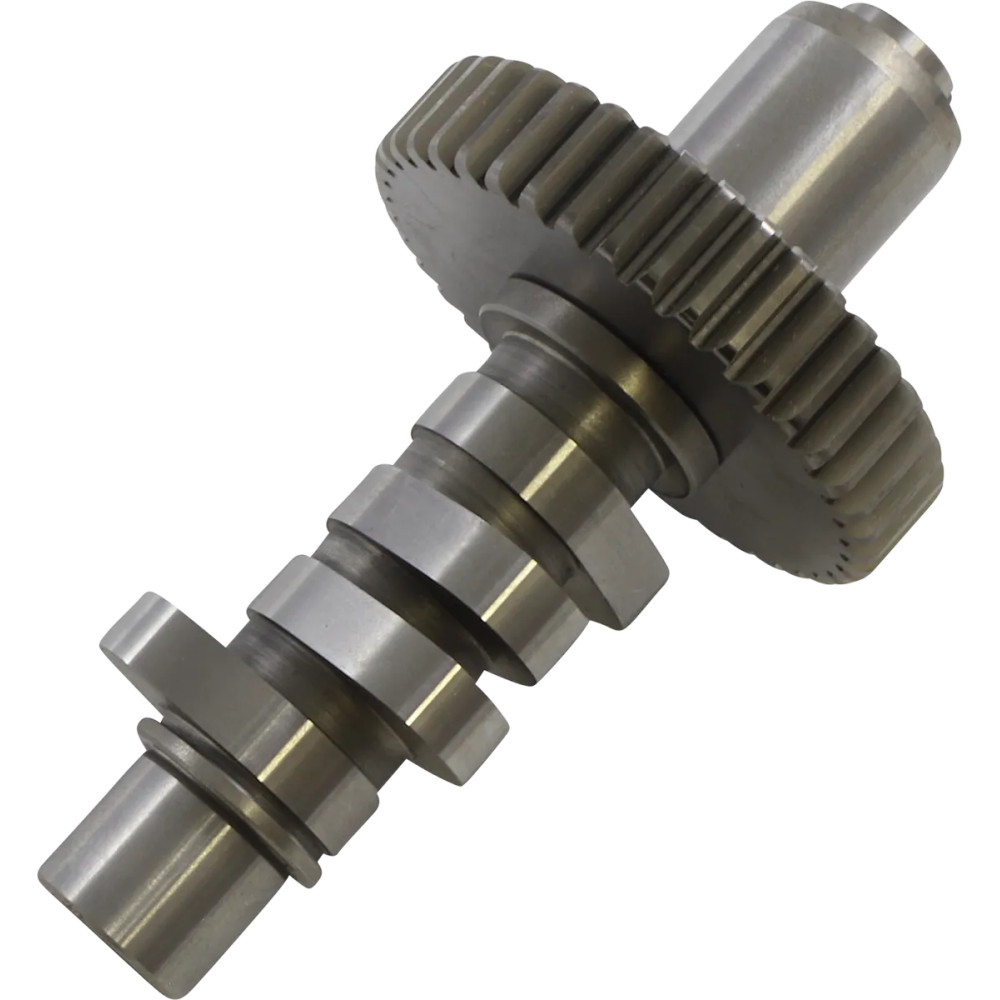

514 Camshaft — 514 Series, 246° duration, 0.540" lift

S&S CYCLE 514 Camshaft — 514 Series, 246° duration, 0.540" lift – 70-77 Big Twin

S&S CYCLE
DS-199187
33-5051

Proven S&S 514 camshaft for strong mid-range power (2500–5000 rpm). For 84"–93" motors; ≤9:1. Requires spring spacing and professional installation checks.

Hurry! only 2 items left in stock.
€273.85
€332.52
Save €58.67
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

Designed for 84" to 93" motors and optimized for mid-range response from 2500 to 5000 rpm.

With hundreds of dyno, street and racetrack test hours, S&S cams deliver proven performance and reliability.

  • Not more than 9:1 compression.
  • Recommend high-performance hydraulic or solid lifters.
  • Spring spacing is required.
  • Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.

Made in the USA 🔧🇺🇸

: DS-199187
In Stock

Data sheet

Units
Each
Brand
S&S CYCLE
Application
Exhaust, Intake
Grind
514 Series
Exhaust Close
23°
Exhaust Duration
246°
Exhaust Lift
0,540" Panhead, 0,514" Shovelhead
Exhaust Lift at TDC
0,177" Panhead, 0,169" Shovelhead
Exhaust Open
43°
Intake Close
43°
Intake Duration
246°
Intake Lift
0,540" Panhead, 0,514" Shovelhead
Intake Lift at TDC
0,177" Panhead, 0,169" Shovelhead
Intake Open
23°
Harley Family
Vintage Big Twin

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Electra Glide Big Twin 1970
Harley Davidson Electra Glide Big Twin 1971
Harley Davidson Electra Glide Big Twin 1972
Harley Davidson Electra Glide Big Twin 1973
Harley Davidson Electra Glide Big Twin 1974
Harley Davidson Electra Glide Big Twin 1975
Harley Davidson Electra Glide Big Twin 1976
Harley Davidson Electra Glide Big Twin 1977
Harley Davidson Electra Glide Big Twin 1970
Harley Davidson Electra Glide Big Twin 1971
Harley Davidson Electra Glide Big Twin 1972
Harley Davidson Electra Glide Big Twin 1973
Harley Davidson Electra Glide Big Twin 1974
Harley Davidson Electra Glide Big Twin 1975
Harley Davidson Electra Glide Big Twin 1976
Harley Davidson Electra Glide Big Twin 1977
Harley Davidson Super Glide Big Twin 1971
Harley Davidson Super Glide Big Twin 1972
Harley Davidson Super Glide Big Twin 1973
Harley Davidson Super Glide Big Twin 1974
Harley Davidson Super Glide Big Twin 1975
Harley Davidson Super Glide Big Twin 1976
Harley Davidson Super Glide Big Twin 1977
Harley Davidson Super Glide Big Twin 1974
Harley Davidson Super Glide Big Twin 1975
Harley Davidson Super Glide Big Twin 1976
Harley Davidson Super Glide Big Twin 1977
Harley Davidson Low Rider Big Twin 1977
