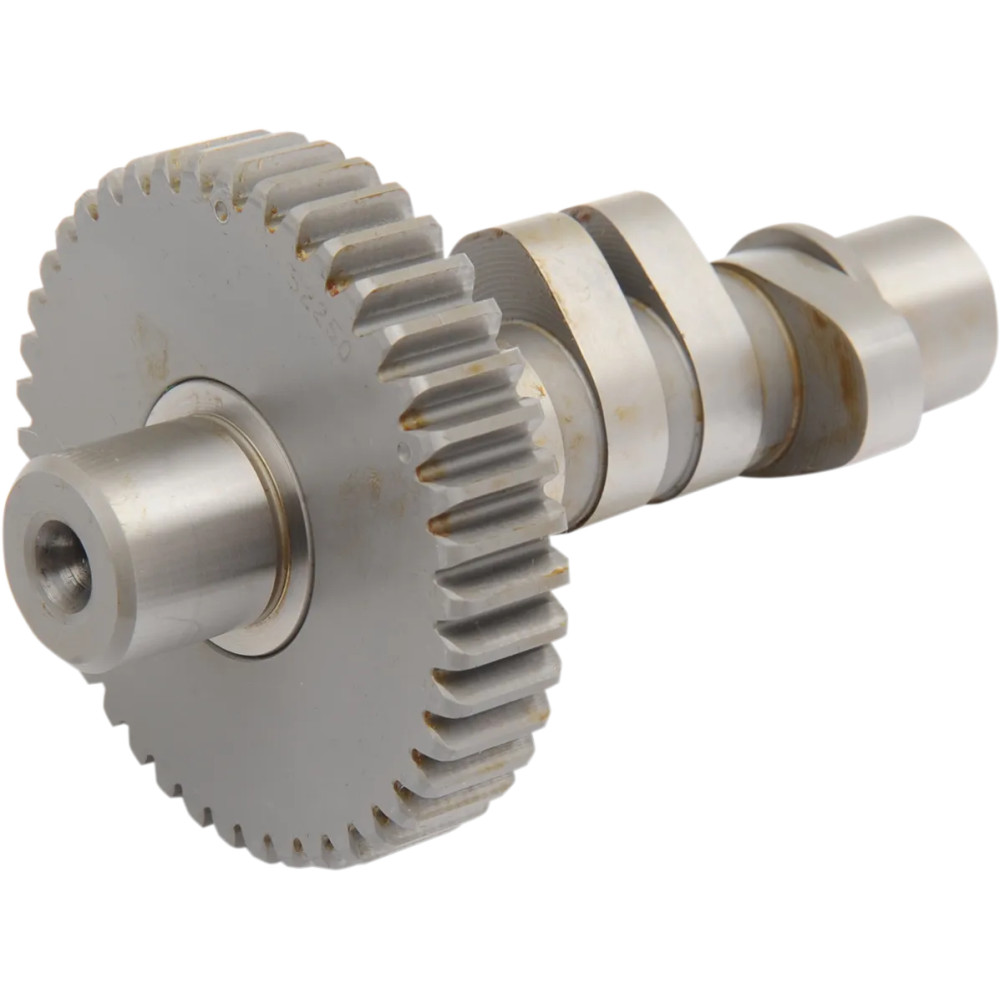

514 Camshaft — 514 Series, 246° duration

S&S CYCLE 514 Camshaft — 514 Series, 246° duration – 48-69 Big Twin

S&S CYCLE
DS-199186
33-5050
S&S 514 camshaft optimized for mid-range response; dyno, street and track tested. Fits 84"–93" motors; recommend high-performance hydraulic or solid lifters.
Out of Stock
€279.04
€338.84
Save €59.80
VAT included
This product is currently unavailable.

The S&S 514 camshaft is built for reliable mid-range performance and has been tested on dynos, the street and the racetrack. 🔧

With hundreds of test hours, you get a cam designed for best response between 2500 and 5000 rpm. These cams are recommended for high-performance hydraulic or solid lifters.

  • Fitment: for 84" to 93" motors; compression not more than 9:1.
  • Spring spacing is required.
  • Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
  • Made in the USA. 🇺🇸
: DS-199186
Out of Stock

Data sheet

Units
Each
Brand
S&S CYCLE
Application
Exhaust, Intake
Grind
514 Series
Exhaust Close
23°
Exhaust Duration
246°
Exhaust Lift
0,540" Panhead, 0,514" Shovelhead
Exhaust Lift at TDC
0,177" Panhead, 0,169" Shovelhead
Exhaust Open
43°
Intake Close
43°
Intake Duration
246°
Intake Lift
0,540" Panhead, 0,514" Shovelhead
Intake Lift at TDC
0,177" Panhead, 0,169" Shovelhead
Intake Open
23°
Harley Family
Vintage Big Twin
