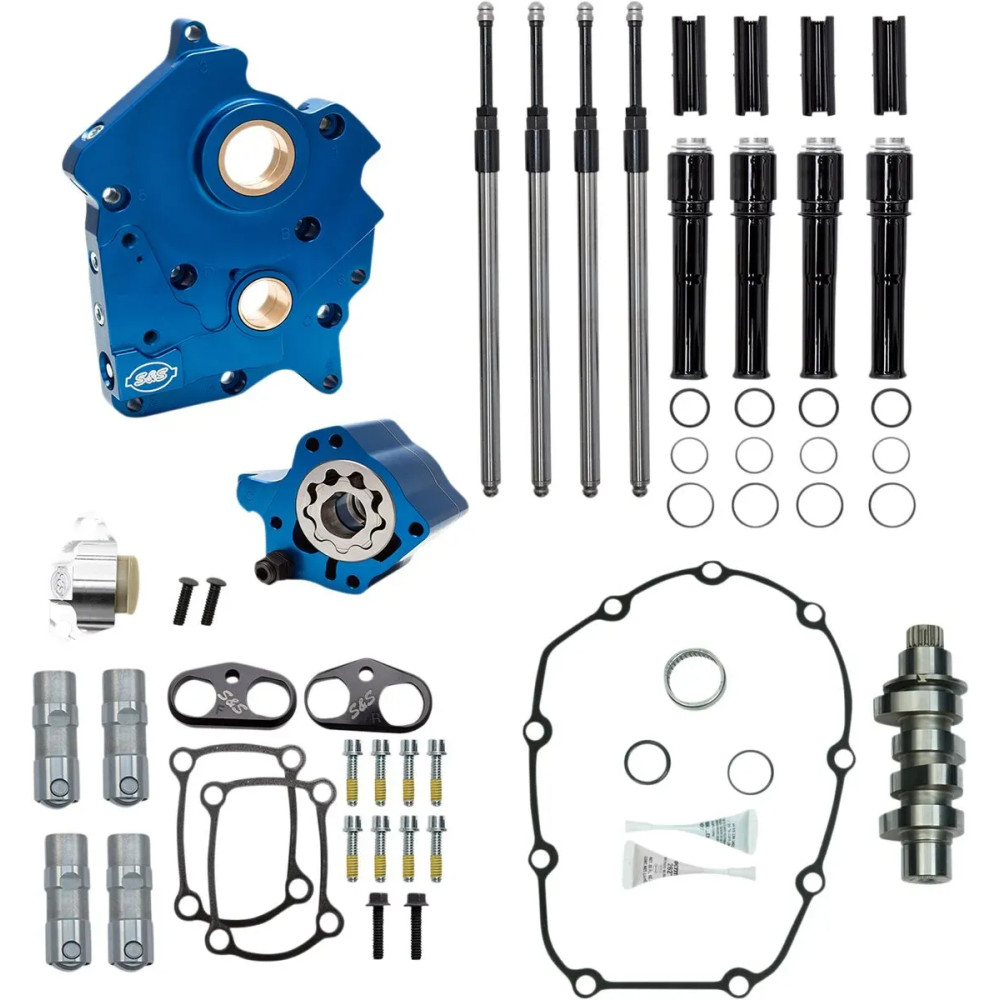

S&S CYCLE Cam Chest Kit for M8 — Water cooled, 475 HP – 17-24 Touring, 20-25 Trike, 17-23 CVO

Data sheet

Type

Chain

Units

Kit

Brand

S&S CYCLE

Application

Water Cooled

Grind

475C

Exhaust Close

28,5° Front, 20,2° Rear

Exhaust Duration

263,9° Front, 252,5° Rear

Exhaust Lift

0,475"

Exhaust Lift at TDC

0,208" Front, 0,170" Rear

Exhaust Lobe Centerline

103,5° Front, 106,0° Rear

Exhaust Open

55,5° Front, 52,2° Rear

Intake Close

27,2° Front, 31,2° Rear

Intake Duration

213,5° Front, 213,5° Rear

Intake Lift

0,475"

Intake Lift at TDC

0,107" Front, 0,093" Rear

Intake Lobe Centerline

100,5° Front, 104,5° Rear

Intake Open

6,2° Front, 2,2° Rear
