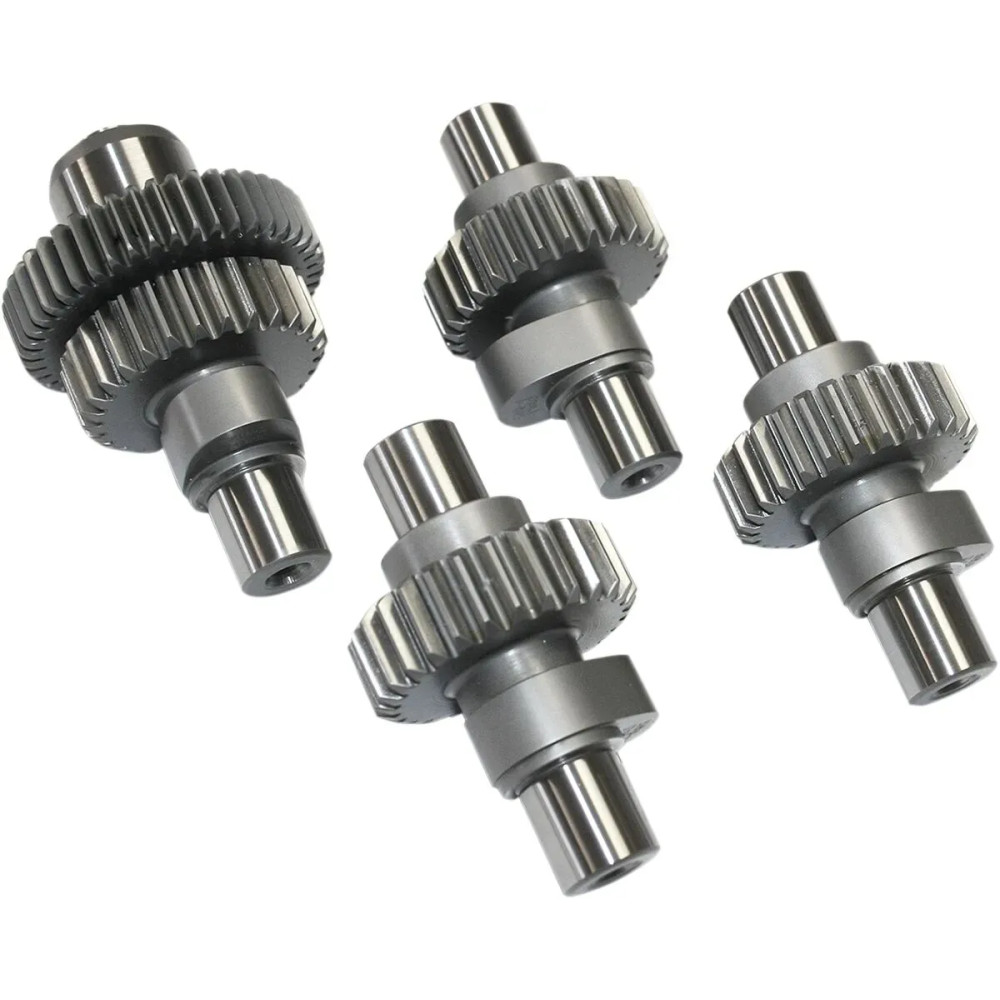

FEULING PARTS Reaper® 580 Cam — 580 Series grind, gear set – 91-22 Sportster

Name: FEULING PARTS Reaper® 580 Cam — 580 Series grind, gear set – 91-22 Sportster
Brand: FEULING PARTS
SKU: 0925-0894
Price: 509.54 EUR
Availability: InStock

Brand : FEULING PARTS

Reference : 0925-0894

MPN : 1377

SELECT YOUR VEHICLE TO VERIFY THE FITMENT

Increases horsepower and shifts the powerband higher in the rev range. High-flow intake and exhaust required; most cam compartments will need machining.

Hurry! only 4 items left in stock.

€509.54

€618.72

Save €109.18

VAT included

Delayed availability notice:

This product requires an extended supply time because it is located in our United States warehouse.
When ordered together with items that are currently in stock, the entire order will be shipped once all items are available.

Add to Compare

Add to Wishlist

We accept many payment methods

The Reaper® 580 Cam is designed for riders who want more horsepower and a powerband higher in the RPM range. 🔥

Higher compression is recommended, along with performance pushrods and lifters.

High-flow intake and performance exhaust are required; most cam compartments will need machining to make clearance for high-lift cams.

Rpm range: 2400–6900+; overlap: 42°. Does not fit XR models.

Requires high-lift valve springs — see Fueling Beehive® Econo, Endurance, or High Load valve springs.

Reference : 0925-0894

In Stock

Data sheet

Type: Gear
Units: Set
Brand: FEULING PARTS
Application: Exhaust, Intake
Grind: 580 Series
Exhaust Close: 21°
Exhaust Duration: 268°
Exhaust Lift: 0,580"
Exhaust Lift at TDC: 0,180"
Exhaust Lobe Centerline: 113°
Exhaust Open: 67°
Intake Close: 57°
Intake Duration: 258°
Intake Lift: 0,580"
Intake Lift at TDC: 0.191"
Intake Lobe Centerline: 108°
Intake Open: 21°
Harley Family: Sportster

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer	Model	Family	Year

BUELL			2000
BUELL			2001
BUELL			2002
BUELL	Cyclone		2000
BUELL	Cyclone		2001
BUELL	Cyclone		2002
BUELL	Cyclone		2002
BUELL	Thunderbolt		2000
BUELL	Thunderbolt		2001
BUELL	Thunderbolt		2000
BUELL	Thunderbolt		2001
BUELL	Thunderbolt		2002
BUELL	Lightning		2000
BUELL	Lightning		2001
BUELL	Lightning		2002
BUELL	White Lightning		2002
BUELL	Firebolt		2002
Harley Davidson	Sportster Custom	Sportster	1996
Harley Davidson	Sportster Custom	Sportster	1997
Harley Davidson	Sportster Custom	Sportster	1998
Harley Davidson	Sportster Custom	Sportster	1999
Harley Davidson	Sportster Custom	Sportster	2000
Harley Davidson	Sportster Custom	Sportster	2001
Harley Davidson	Sportster Custom	Sportster	2002
Harley Davidson	Sportster Custom	Sportster	2003
Harley Davidson	Sportster Custom	Sportster	2004
Harley Davidson	Sportster Custom	Sportster	2005
Harley Davidson	Sportster Custom	Sportster	2006
Harley Davidson	Sportster Custom	Sportster	2007
Harley Davidson	Sportster Custom	Sportster	2008
Harley Davidson	Sportster Custom	Sportster	2009
Harley Davidson	Sportster Custom	Sportster	2010
Harley Davidson	Sportster Custom	Sportster	2011
Harley Davidson	Sportster Custom	Sportster	2012
Harley Davidson	Sportster Custom 110th Anniversary	Sportster	2013
Harley Davidson	Sportster Custom	Sportster	2014
Harley Davidson	Sportster Custom	Sportster	2015
Harley Davidson	Sportster Custom	Sportster	2016
Harley Davidson	Sportster Custom	Sportster	2017
Harley Davidson	Sportster Custom	Sportster	2018
Harley Davidson	Sportster Custom	Sportster	2019
Harley Davidson	Sportster Custom	Sportster	2020
Harley Davidson	Sportster Custom	Sportster	2014
Harley Davidson	Sportster Custom	Sportster	2015
Harley Davidson	Sportster Custom	Sportster	2016
Harley Davidson	Sportster Custom	Sportster	2017
Harley Davidson	Sportster Custom	Sportster	2018
Harley Davidson	Sportster Custom	Sportster	2019
Harley Davidson	Sportster Custom	Sportster	2020
Harley Davidson	Sportster Custom LE A	Sportster	2014
Harley Davidson	Sportster Custom LE A	Sportster	2015
Harley Davidson	Sportster Custom LE A	Sportster	2016
Harley Davidson	Sportster Custom LE B	Sportster	2014
Harley Davidson	Sportster Custom LE B	Sportster	2015
Harley Davidson	Sportster Custom LE B	Sportster	2016
Harley Davidson	Sportster Custom LE B	Sportster	2017
Harley Davidson	Roadster	Sportster	2016
Harley Davidson	Roadster	Sportster	2017
Harley Davidson	Sportster Roadster	Sportster	2018
Harley Davidson	Sportster Roadster	Sportster	2019
Harley Davidson	Sportster Roadster	Sportster	2020
Harley Davidson	Roadster	Sportster	2016
Harley Davidson	Roadster	Sportster	2017
Harley Davidson	Sportster Roadster	Sportster	2018
Harley Davidson	Sportster Roadster	Sportster	2019
Harley Davidson	Sportster Roadster	Sportster	2020
Harley Davidson	Low	Sportster	2006
Harley Davidson	Low	Sportster	2007
Harley Davidson	Low	Sportster	2008
Harley Davidson	Low	Sportster	2009
Harley Davidson	Low	Sportster	2010
Harley Davidson	Low	Sportster	2011
Harley Davidson	Nightster	Sportster	2007
Harley Davidson	Nightster	Sportster	2008
Harley Davidson	Nightster	Sportster	2009
Harley Davidson	Nightster	Sportster	2010
Harley Davidson	Nightster	Sportster	2011
Harley Davidson	Nightster	Sportster	2012
Harley Davidson	Sportster Iron	Sportster	2021
Harley Davidson	Sportster Iron	Sportster	2018
Harley Davidson	Sportster Iron	Sportster	2019
Harley Davidson	Sportster Iron	Sportster	2020
Harley Davidson	Sportster Iron	Sportster	2021
Harley Davidson	Roadster	Sportster	2004
Harley Davidson	Roadster	Sportster	2005
Harley Davidson	Roadster	Sportster	2006
Harley Davidson	Roadster	Sportster	2007
Harley Davidson	Roadster	Sportster	2008
Harley Davidson	Sport	Sportster	1996
Harley Davidson	Sport	Sportster	1997
Harley Davidson	Sport	Sportster	1998
Harley Davidson	Sport	Sportster	1999
Harley Davidson	Sport	Sportster	2000
Harley Davidson	Sport	Sportster	2001
Harley Davidson	Sport	Sportster	2002
Harley Davidson	Sport	Sportster	2003
Harley Davidson	Super Low	Sportster	2014
Harley Davidson	Super Low	Sportster	2015
Harley Davidson	Super Low	Sportster	2016
Harley Davidson	Super Low	Sportster	2017
Harley Davidson	Sportster Superlow	Sportster	2018
Harley Davidson	Sportster Superlow	Sportster	2019
Harley Davidson	Super Low	Sportster	2014
Harley Davidson	Super Low	Sportster	2015
Harley Davidson	Super Low	Sportster	2016
Harley Davidson	Super Low	Sportster	2017
Harley Davidson	Sportster Superlow	Sportster	2018
Harley Davidson	Sportster Superlow	Sportster	2019
Harley Davidson	Sportster Superlow	Sportster	2020
Harley Davidson	Seventy-Two	Sportster	2012
Harley Davidson	Seventy-Two	Sportster	2013
Harley Davidson	Seventy-Two	Sportster	2014
Harley Davidson	Seventy-Two	Sportster	2015
Harley Davidson	Seventy-Two	Sportster	2016
Harley Davidson	Seventy-Two	Sportster	2014
Harley Davidson	Seventy-Two	Sportster	2015
Harley Davidson	Seventy-Two	Sportster	2016
Harley Davidson	Forty-Eight	Sportster	2010
Harley Davidson	Forty-Eight	Sportster	2011
Harley Davidson	Forty-Eight	Sportster	2012
Harley Davidson	Forty-Eight	Sportster	2013
Harley Davidson	Forty-Eight	Sportster	2014
Harley Davidson	Forty-Eight	Sportster	2015
Harley Davidson	Forty-Eight	Sportster	2016
Harley Davidson	Forty-Eight	Sportster	2017
Harley Davidson	Sportster Forty-Eight	Sportster	2018
Harley Davidson	Sportster Forty-Eight	Sportster	2019
Harley Davidson	Sportster Forty-Eight	Sportster	2020
Harley Davidson	Sportster Forty-Eight	Sportster	2021
Harley Davidson	Sportster Forty-Eight	Sportster	2022
Harley Davidson	Forty-Eight	Sportster	2014
Harley Davidson	Forty-Eight	Sportster	2015
Harley Davidson	Forty-Eight	Sportster	2016
Harley Davidson	Forty-Eight	Sportster	2017
Harley Davidson	Sportster Forty-Eight Anniversary (ANX)	Sportster	2018
Harley Davidson	Sportster Forty-Eight	Sportster	2019
Harley Davidson	Sportster Forty-Eight	Sportster	2020
Harley Davidson	Sportster Forty-Eight	Sportster	2021
Harley Davidson	Sportster Forty-Eight	Sportster	2022
Harley Davidson	Sportster Forty-Eight Special	Sportster	2018
Harley Davidson	Sportster Forty-Eight Special	Sportster	2019
Harley Davidson	Sportster Forty-Eight Special	Sportster	2020
Harley Davidson	Sportster	Sportster	1991
Harley Davidson	Sportster	Sportster	1992
Harley Davidson	Sportster	Sportster	1993
Harley Davidson	Sportster	Sportster	1994
Harley Davidson	Sportster	Sportster	1995
Harley Davidson	Sportster	Sportster	1996
Harley Davidson	Sportster	Sportster	1997
Harley Davidson	Sportster	Sportster	1998
Harley Davidson	Sportster	Sportster	1999
Harley Davidson	Sportster	Sportster	2000
Harley Davidson	Sportster	Sportster	2001
Harley Davidson	Sportster	Sportster	2002
Harley Davidson	Sportster	Sportster	2003
Harley Davidson	Sportster	Sportster	2004
Harley Davidson	Sportster	Sportster	2005
Harley Davidson	Sportster	Sportster	2006
Harley Davidson	Sportster	Sportster	2007
Harley Davidson	Sportster	Sportster	2008
Harley Davidson	Sportster	Sportster	2009
Harley Davidson	Sportster 53 Custom	Sportster	1998
Harley Davidson	Sportster 53 Custom	Sportster	1999
Harley Davidson	Sportster 53 Custom	Sportster	2000
Harley Davidson	Sportster 53 Custom	Sportster	2001
Harley Davidson	Sportster 53 Custom	Sportster	2002
Harley Davidson	Sportster 53 Custom	Sportster	2003
Harley Davidson	Sportster Custom	Sportster	2004
Harley Davidson	Sportster Custom	Sportster	2005
Harley Davidson	Sportster Custom	Sportster	2006
Harley Davidson	Sportster Custom	Sportster	2007
Harley Davidson	Sportster Custom	Sportster	2008
Harley Davidson	Sportster Custom	Sportster	2009
Harley Davidson	Sportster Custom	Sportster	2010
Harley Davidson	Low	Sportster	2005
Harley Davidson	Low	Sportster	2006
Harley Davidson	Low	Sportster	2007
Harley Davidson	Low	Sportster	2008
Harley Davidson	Low	Sportster	2009
Harley Davidson	Low	Sportster	2010
Harley Davidson	Super Low	Sportster	2011
Harley Davidson	Super Low	Sportster	2012
Harley Davidson	Super Low	Sportster	2013
Harley Davidson	Super Low	Sportster	2014
Harley Davidson	Super Low	Sportster	2015
Harley Davidson	Super Low	Sportster	2016
Harley Davidson	Super Low	Sportster	2017
Harley Davidson	Sportster SuperLow	Sportster	2018
Harley Davidson	Sportster SuperLow	Sportster	2019
Harley Davidson	Sportster SuperLow	Sportster	2020
Harley Davidson	Super Low	Sportster	2014
Harley Davidson	Super Low	Sportster	2015
Harley Davidson	Super Low	Sportster	2016
Harley Davidson	Super Low	Sportster	2017
Harley Davidson	Sportster SuperLow	Sportster	2018
Harley Davidson	Sportster SuperLow	Sportster	2019
Harley Davidson	Sportster SuperLow	Sportster	2020
Harley Davidson	Iron	Sportster	2009
Harley Davidson	Iron	Sportster	2010
Harley Davidson	Iron	Sportster	2011
Harley Davidson	Iron	Sportster	2012
Harley Davidson	Iron	Sportster	2013
Harley Davidson	Iron	Sportster	2014
Harley Davidson	Iron	Sportster	2015
Harley Davidson	Iron	Sportster	2016
Harley Davidson	Iron	Sportster	2017
Harley Davidson	Sportster Iron	Sportster	2018
Harley Davidson	Sportster Iron	Sportster	2019
Harley Davidson	Sportster Iron	Sportster	2020
Harley Davidson	Sportster Iron	Sportster	2021
Harley Davidson	Sportster Iron	Sportster	2022
Harley Davidson	Iron	Sportster	2014
Harley Davidson	Iron	Sportster	2015
Harley Davidson	Iron	Sportster	2016
Harley Davidson	Iron	Sportster	2017
Harley Davidson	Sportster Iron	Sportster	2018
Harley Davidson	Sportster Iron	Sportster	2019
Harley Davidson	Sportster Iron	Sportster	2020
Harley Davidson	Sportster Iron	Sportster	2021
Harley Davidson	Sportster Iron	Sportster	2022
Harley Davidson	Roadster	Sportster	2002
Harley Davidson	Roadster	Sportster	2003
Harley Davidson	Roadster	Sportster	2004
Harley Davidson	Roadster	Sportster	2006
Harley Davidson	Roadster	Sportster	2007
Harley Davidson	Roadster	Sportster	2008
Harley Davidson	Roadster	Sportster	2009
Harley Davidson	Roadster	Sportster	2010
Harley Davidson	Roadster	Sportster	2011
Harley Davidson	Roadster	Sportster	2012
Harley Davidson	Roadster	Sportster	2013
Harley Davidson	Roadster	Sportster	2014
Harley Davidson	Roadster	Sportster	2015
Harley Davidson	50th Anniversary	Sportster	2007
Harley Davidson	Sportster	Sportster	1991
Harley Davidson	Sportster	Sportster	1992
Harley Davidson	Sportster	Sportster	1993
Harley Davidson	Sportster	Sportster	1994
Harley Davidson	Sportster	Sportster	1995
Harley Davidson	Sportster	Sportster	1996
Harley Davidson	Sportster	Sportster	1997
Harley Davidson	Sportster	Sportster	1998
Harley Davidson	Sportster	Sportster	1999
Harley Davidson	Sportster	Sportster	2000
Harley Davidson	Sportster	Sportster	2001
Harley Davidson	Sportster	Sportster	2002
Harley Davidson	Sportster	Sportster	2003
Harley Davidson	Sportster Hugger	Sportster	1991
Harley Davidson	Sportster	Sportster	1992
Harley Davidson	Sportster Hugger	Sportster	1993
Harley Davidson	Sportster Deluxe	Sportster	1994
Harley Davidson	Sportster Deluxe	Sportster	1995
Harley Davidson	Sportster Hugger	Sportster	1996
Harley Davidson	Sportster	Sportster	1997
Harley Davidson	Sportster	Sportster	1998
Harley Davidson	Sportster	Sportster	1999
Harley Davidson	Sportster	Sportster	2000
Harley Davidson	Sportster	Sportster	2001
Harley Davidson	Sportster Hugger	Sportster	2002
Harley Davidson	Sportster	Sportster	2003
Harley Davidson		Sportster	2008
Harley Davidson		Sportster	2009
Harley Davidson		Sportster	2010
Harley Davidson		Sportster	2011
Harley Davidson		Sportster	2012
Harley Davidson		Sportster	2013

FEULING PARTS Reaper® 580 Cam — 580 Series grind, gear set – 91-22 Sportster

We accept many payment methods

Data sheet

Contact us

Products

Our company
