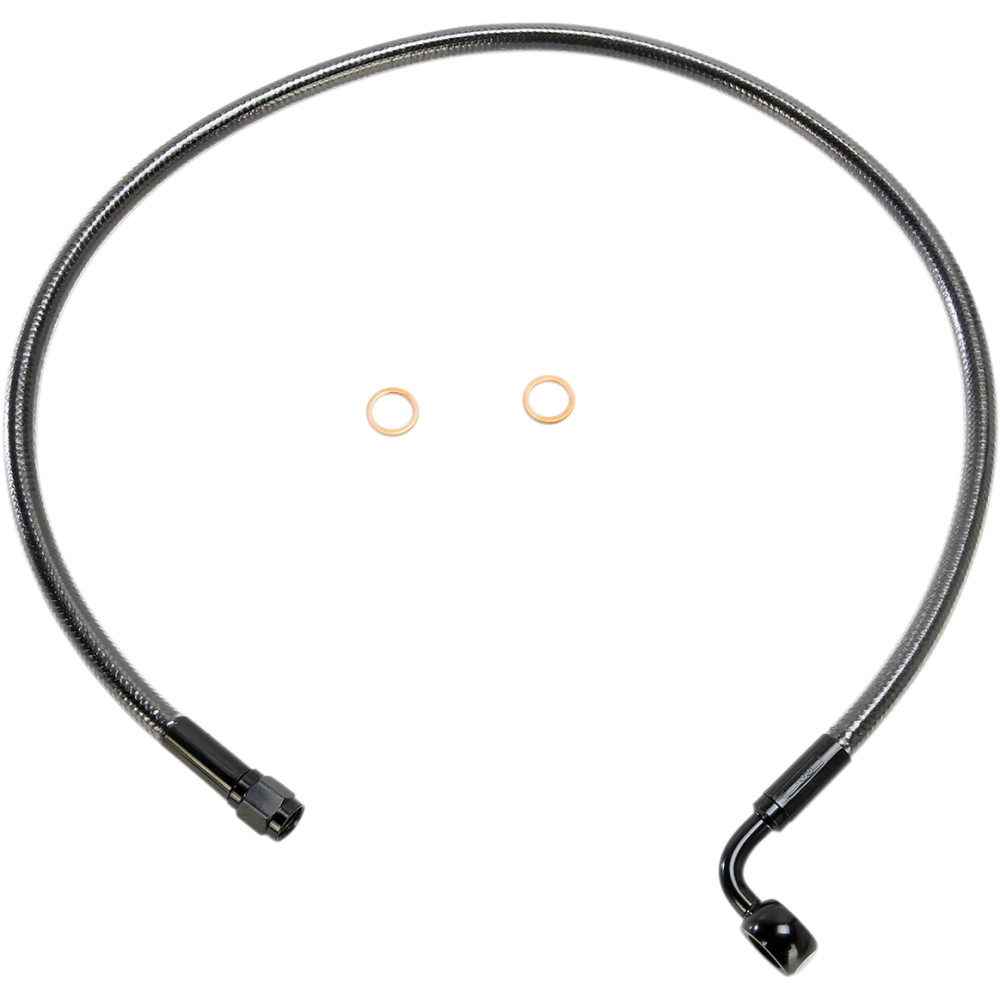

Alternate Length Designer Series ABS-Specific Front Brake Line Kit — 26" length, 10 mm 90° banjo

MAGNUM SHIELDING Alternate Length Designer Series ABS-Specific Front Brake Line Kit — 26" length, 10 mm 90° banjo – 15-17 Softail

1741-4091
AS47226
ABS-specific alternate-length front brake line kit with PTFE inner tubing, aramid reinforcement and a crystal-clear outer jacket. Upper, mid and lower kits sold separately.
Hurry! only 1 items left in stock.
€78.84
€96.44
Save €17.60
VAT included
local_shipping In stock, ships in 20-25 days

This alternate-length front brake line kit is engineered specifically for ABS-equipped Harley-Davidson motorcycles and designed to follow OEM routing for both stock and alternate-length setups. 🚦

  • Direct-fit lower assembly pairs with alternative-length upper lines to complete the system.
  • PTFE inner tubing and DuPont™ Kevlar® aramid fiber combine with premium braided shielding and a crystal-clear outer jacket for minimal expansion, abrasion resistance and long-term clarity.
  • Upper, lower, mid and adapter kits are sold separately to allow precise fitment for a wide range of models and configurations.
  • Adapter options enable correct connections for many Softail configurations; AN-3 fittings permit direct connection in some dual-disc replacements.
  • Assembled in the USA.

Fitment & installation notes

  • Single-disc Dyna and Sportster models typically use two kits (one upper and one lower).
  • Softail models generally utilize three kits, with the lower kit optional on many models; adapter needs vary by year and setup.
  • Dual-disc Touring models use three kits; Trike models use two kits (upper and mid).
  • Non-stock applications require measuring upper line length and banjo angle to ensure correct fitment; use your stock master cylinder line or the referenced mid-line as a guide where applicable.
: 1741-4091
In Stock

Data sheet

Type
Alternate Length
Units
Each
Color/Finish
Black, Black Pearl
Brand
MAGNUM SHIELDING
For Braking System
with ABS
Length
66 cm (26")
Upper Banjo Fitting
10 mm 90° Banjo Fitting
Material
Stainless Steel
Harley Family
Softail

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Breakout Softail 2015
Harley Davidson Breakout Softail 2016
Harley Davidson Breakout Softail 2017
