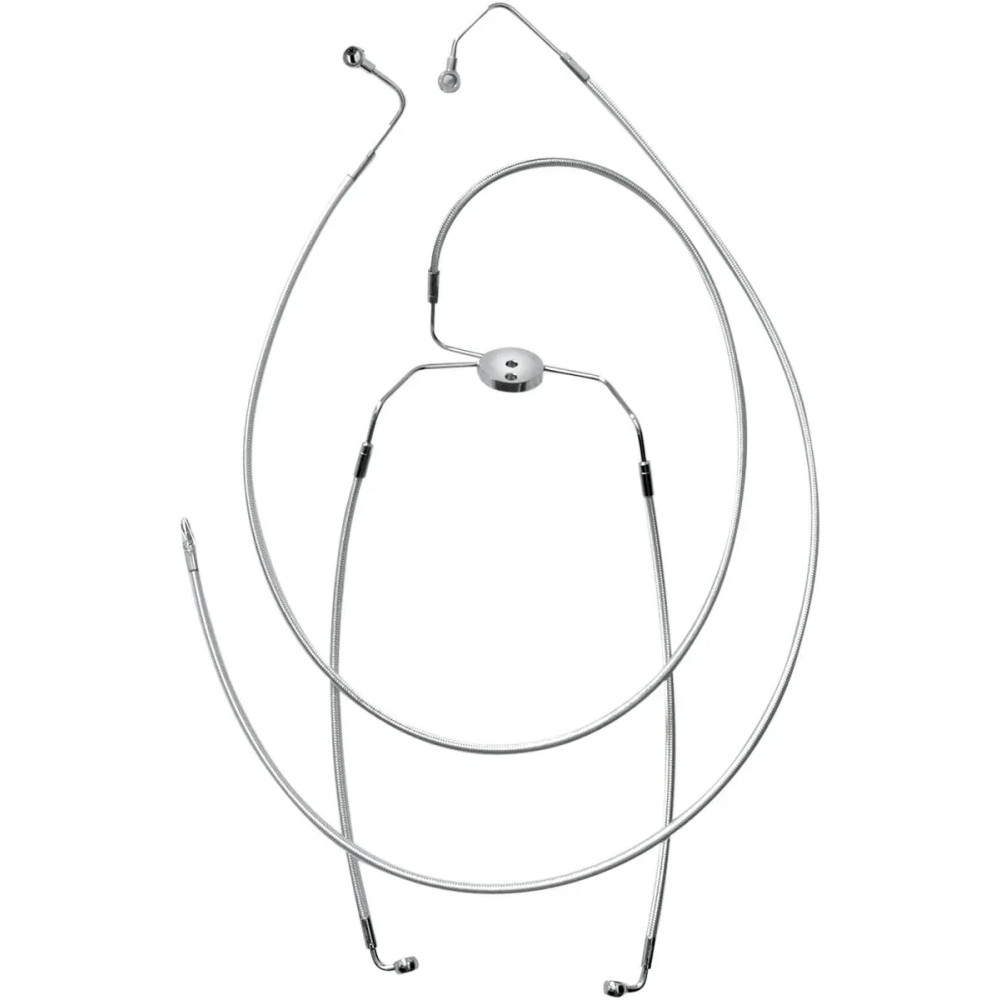

MAGNUM SHIELDING Alternate Length Designer Series ABS-Specific Front Brake Line Kit — 40" length, 10 mm 35° banjo fitting

Designed for Harley‑Davidson motorcycles equipped with ABS, this alternate length front brake line kit preserves OEM routing while ensuring proper ABS operation. 🛑

The brake hose assembly uses PTFE inner tubing, aramid fiber reinforcement and premium braided construction with a clear outer jacket to minimize expansion and protect finished surfaces from scuffs and discoloration. 🔧

The kit includes a direct-fit lower assembly intended to be used with alternative length upper lines; upper, lower, mid and adapter kits are sold separately to achieve correct routing and fit.

Model fitment varies: single disc Dyna and Sportster applications require two kits (one upper, one lower); most Softail models use three kits (upper, mid and optional lower), with specific adapter and installation notes for '11 - '17 and '18+ Softail applications. Touring and Trike models require a Designer mid-line and upper line to complete the routing from the master cylinder to the ABS controller.

Measure upper line length using your stock master cylinder brake line as a guide, pulling back the rubber boot and measuring from the soft line entry point at the crimp collar up to the master cylinder; follow model-specific instructions when adapters are used.

Carefully follow fitment and installation guidance to maintain ABS function and braking performance. Assembled in the USA. 🇺🇸
