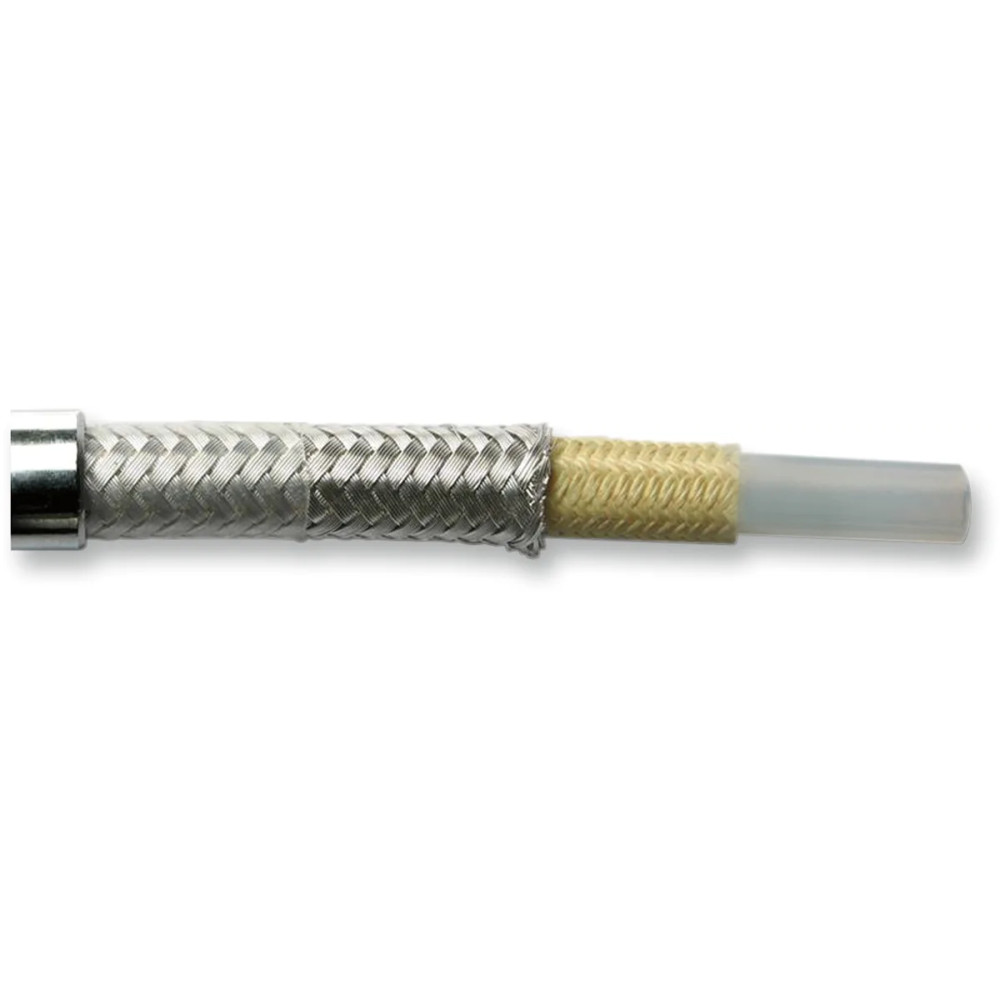

E-Z Align Braided Single Disc Front Brake Line — 137 cm (54\"), non-ABS, lower 10 mm 90° banjo, upper 7/16\" 35° banjo

MAGNUM SHIELDING E-Z Align Braided Single Disc Front Brake Line — 137 cm (54\"), non-ABS, lower 10 mm 90° banjo, upper 7/16\" 35° banjo – 86-89, 91, 93, 98 Softail, 91, 13 Dyna, 86 Big Twin, 86-94 FXR, 86-03 Sportster

MAGNUM SHIELDING
1741-3465
56154SW
E-Z Align braided single disc front brake line with E-Z Align rotating caliper banjo for no-kink fitments. Housing length measured center-to-flat 90°. Alternate-length option for non-ABS models (excl. '04+ Sportsters).
Hurry! only 4 items left in stock.
€101.33
€123.06
Save €21.73
VAT included
local_shipping In stock, ships in 20-25 days

Add to Compare
Add to Wishlist

The E-Z Align braided single disc front brake line delivers precise routing and kink-free fitment. 🔧

Housing length is measured from the center of the banjo hole at the master cylinder to the flat part of the 90° at the caliper. The E-Z Align rotating caliper banjo feature allows for perfect no-kink fitments and easy alignment during installation. ✅

  • Works as an alternate-length line for all non-ABS models (except '04+ Sportsters).
  • Designed for clean routing and dependable performance under repeated use.
  • Included fittings rotate to accommodate tight caliper positions and simplify installation.

Check fitment before installation and bleed the brake system per manufacturer recommendations.

: 1741-3465
In Stock

Data sheet

Type
Alternate Length
Units
Each
Color/Finish
Silver, Polished
Brand
MAGNUM SHIELDING
For Braking System
without ABS
Length
137 cm (54")
Upper Banjo Fitting
7/16" 35° Banjo Fitting
Lower Banjo Fitting
10 mm 90° Banjo Fitting
Material
Stainless Steel
Harley Family
Dyna
FXR
Softail
Sportster
Vintage Big Twin

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Heritage Softail Softail 1986 Non-ABS Single Disc
Harley Davidson Dyna Glide Sturgis Dyna 1991 Non-ABS Single Disc
Harley Davidson Dyna Street Bob Limited Dyna 2013 Non-ABS Single Disc
Harley Davidson Dyna Street Bob Factory Custom Dyna 2013 Non-ABS Single Disc
Harley Davidson Fat Bob Big Twin 1986 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1987 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1988 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1989 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1990 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1991 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1992 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1993 Non-ABS Single Disc
Harley Davidson Low Rider Custom FXR 1994 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1986 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1987 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1988 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1989 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1990 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1991 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1992 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1993 Non-ABS Single Disc
Harley Davidson Super Glide FXR 1994 Non-ABS Single Disc
Harley Davidson Low Glide Custom FXR 1986 Non-ABS Single Disc
Harley Davidson Low Glide Custom FXR 1987 Non-ABS Single Disc
Harley Davidson Low Rider FXR 1986 Non-ABS Single Disc
Harley Davidson Low Rider FXR 1987 Non-ABS Single Disc
Harley Davidson Low Rider FXR 1988 Non-ABS Single Disc
Harley Davidson Low Rider FXR 1989 Non-ABS Single Disc
Harley Davidson Low Rider FXR 1990 Non-ABS Single Disc
Harley Davidson Low Rider FXR 1991 Non-ABS Single Disc
Harley Davidson Low Rider FXR 1992 Non-ABS Single Disc
Harley Davidson Softail Softail 1986 Non-ABS Single Disc
Harley Davidson Softail Softail 1988 Non-ABS Single Disc
Harley Davidson Softail Softail 1989 Non-ABS Single Disc
Harley Davidson Softail Night Train Softail 1998 Non-ABS Single Disc
Harley Davidson Softail Custom Softail 1986 Non-ABS Single Disc
Harley Davidson Softail Custom Softail 1987 Non-ABS Single Disc
Harley Davidson Softail Custom Softail 1989 Non-ABS Single Disc
Harley Davidson Softail Custom Softail 1993 Non-ABS Single Disc
Harley Davidson Softail Springer Softail 1988 Non-ABS Single Disc
Harley Davidson Softail Springer Softail 1989 Non-ABS Single Disc
Harley Davidson Softail Springer Softail 1991 Non-ABS Single Disc
Harley Davidson Wide Glide Big Twin 1986 Non-ABS Single Disc
Harley Davidson Sportster Custom Sportster 1997 Non-ABS Single Disc
Harley Davidson Sportster Custom Sportster 1998 Non-ABS Single Disc
Harley Davidson Sportster Custom Sportster 1999 Non-ABS Single Disc
Harley Davidson Sport Sportster 1996 Non-ABS Single Disc
Harley Davidson Sport Sportster 1997 Non-ABS Single Disc
Harley Davidson Sport Sportster 1998 Non-ABS Single Disc
Harley Davidson Sport Sportster 1999 Non-ABS Single Disc
Harley Davidson Sport Sportster 2000 Non-ABS Single Disc
Harley Davidson Sport Sportster 2001 Non-ABS Single Disc
Harley Davidson Sport Sportster 2002 Non-ABS Single Disc
Harley Davidson Sport Sportster 2003 Non-ABS Single Disc
Harley Davidson Sportster 53 Custom Sportster 1998 Non-ABS Single Disc
Harley Davidson Sportster 53 Custom Sportster 1999 Non-ABS Single Disc
Harley Davidson Sportster 53 Custom Sportster 2000 Non-ABS Single Disc
Harley Davidson Sportster 53 Custom Sportster 2001 Non-ABS Single Disc
Harley Davidson Sportster 53 Custom Sportster 2002 Non-ABS Single Disc
Harley Davidson Sportster 53 Custom Sportster 2003 Non-ABS Single Disc
Harley Davidson Roadster Sportster 2002 Non-ABS Single Disc
Harley Davidson Roadster Sportster 2003 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1986 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1987 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1988 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1989 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1990 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1991 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1992 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1993 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1994 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1995 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1996 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1997 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1998 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1999 Non-ABS Single Disc
Harley Davidson Sportster Sportster 2000 Non-ABS Single Disc
Harley Davidson Sportster Sportster 2001 Non-ABS Single Disc
Harley Davidson Sportster Sportster 2002 Non-ABS Single Disc
Harley Davidson Sportster Sportster 2003 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1986 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1987 Non-ABS Single Disc
Harley Davidson Sportster Hugger Sportster 1988 Non-ABS Single Disc
Harley Davidson Sportster Deluxe Sportster 1989 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1990 Non-ABS Single Disc
Harley Davidson Sportster Deluxe Sportster 1991 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1992 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1993 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1994 Non-ABS Single Disc
Harley Davidson Sportster Hugger Sportster 1995 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1996 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1997 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1998 Non-ABS Single Disc
Harley Davidson Sportster Sportster 1999 Non-ABS Single Disc
Harley Davidson Sportster Sportster 2000 Non-ABS Single Disc
Harley Davidson Sportster Sportster 2001 Non-ABS Single Disc
Harley Davidson Sportster Hugger Sportster 2002 Non-ABS Single Disc
Harley Davidson Sportster Hugger Sportster 2003 Non-ABS Single Disc
