E-Z Align Braided Single Disc Front Brake Line — 45", 10 mm 90° lower, 7/16" 35° upper, without ABS

MAGNUM SHIELDING E-Z Align Braided Single Disc Front Brake Line — 45", 10 mm 90° lower, 7/16" 35° upper, without ABS – 99-11 Softail, 06-09, 13-16 Dyna

MAGNUM SHIELDING
1741-3286
36145SW
Braided front brake line with E‑Z Align rotating caliper banjo for kink-free routing; fits many alternative-length front brake setups (excludes some Sportster years).
Hurry! only 15 items left in stock.
€82.45
€100.84
Save €18.39
VAT included
local_shipping In stock, ships in 2-3 days

Add to Compare
Add to Wishlist

Engineered for precise routing and a clean installation, the E‑Z Align braided single disc front brake line delivers a trouble-free fit to many front brake setups. 🛠️

  • Housing length is measured from the center of the banjo hole at the master cylinder to the flat part of the 90° at the caliper.

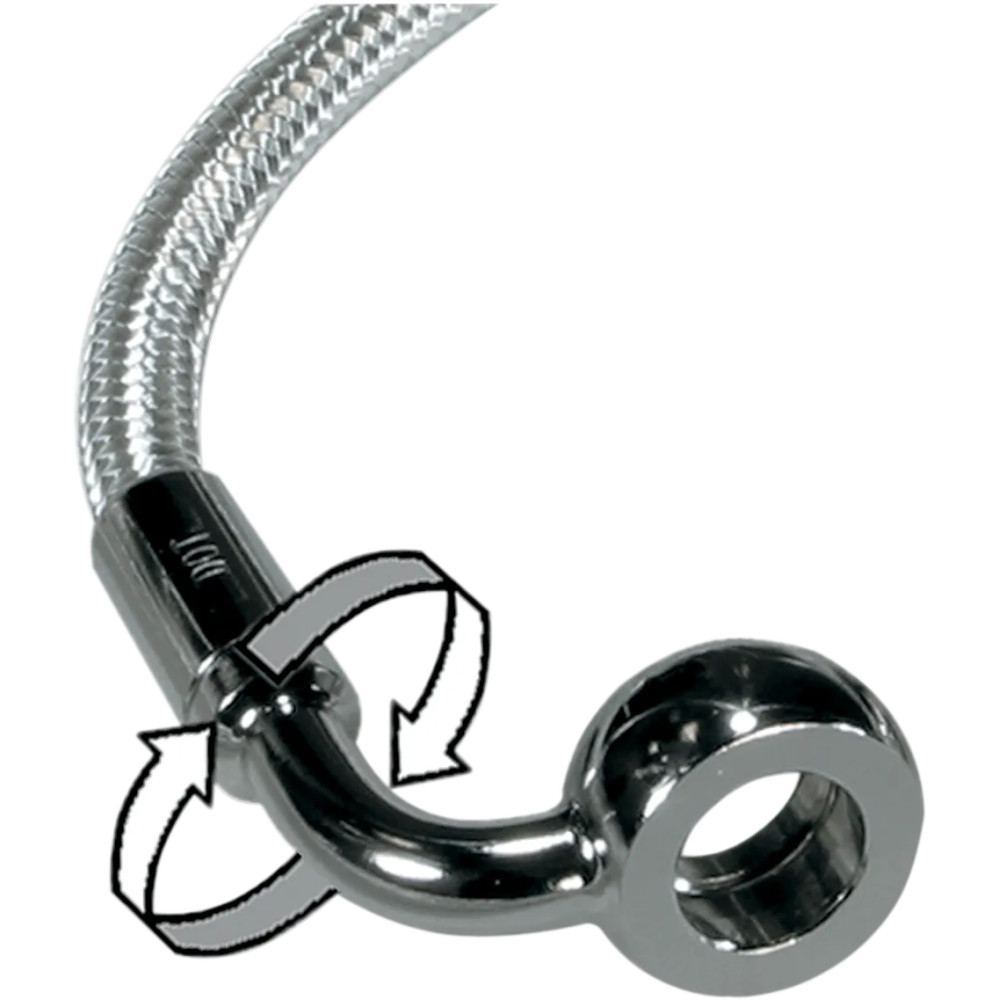

  • The E‑Z Align rotating caliper banjo feature allows for a perfect, no-kink fitment at the caliper.
  • Designed to work as an alternate length line for a range of models; not compatible with certain Sportster years.

Installation is straightforward and the braided construction is built to resist expansion and maintain consistent brake feel under load. ⚙️

: 1741-3286
In Stock

Data sheet

Type
Alternate Length
Units
Each
Color/Finish
Chrome, Sterling Chromite® II
Brand
MAGNUM SHIELDING
For Braking System
without ABS
Length
114 cm (45")
Upper Banjo Fitting
7/16" 35° Banjo Fitting
Lower Banjo Fitting
10 mm 90° Banjo Fitting
Material
Stainless Steel
Harley Family
Dyna
Softail

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Fat Boy Softail 2000 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2001 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2002 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2003 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2004 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2005 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2006 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2007 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2008 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2009 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2010 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2011 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2001 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2002 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2003 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2004 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2005 Non-ABS Single Disc
Harley Davidson Fat Boy Softail 2006 Non-ABS Single Disc
Harley Davidson Fat Boy 15th Anniversary Softail 2005 Non-ABS Single Disc
Harley Davidson Heritage Softail Springer Softail 2000 Non-ABS Single Disc
Harley Davidson Heritage Softail Springer Softail 2001 Non-ABS Single Disc
Harley Davidson Heritage Softail Springer Softail 2002 Non-ABS Single Disc
Harley Davidson Heritage Softail Springer Softail 2003 Non-ABS Single Disc
Harley Davidson Heritage Softail Springer Softail 2003 Non-ABS Single Disc
Harley Davidson Dyna Street Bob Dyna 2013 Non-ABS Single Disc
Harley Davidson Dyna Street Bob Dyna 2014 Non-ABS Single Disc
Harley Davidson Dyna Street Bob Dyna 2015 Non-ABS Single Disc
Harley Davidson Dyna Street Bob Dyna 2016 Non-ABS Single Disc
Harley Davidson Dyna Low Rider Dyna 2008
Harley Davidson Dyna Low Rider Dyna 2009
Harley Davidson Dyna Low Rider Dyna 2007 Non-ABS Single Disc
Harley Davidson Dyna Low Rider Dyna 2006 Non-ABS Single Disc
Harley Davidson Softail Softail 1999 Non-ABS Single Disc
Harley Davidson Softail Softail 2000 Non-ABS Single Disc
Harley Davidson Softail Softail 2001 Non-ABS Single Disc
Harley Davidson Softail Softail 2002 Non-ABS Single Disc
Harley Davidson Softail Softail 2003 Non-ABS Single Disc
Harley Davidson Softail Softail 2004 Non-ABS Single Disc
Harley Davidson Softail Softail 2005 Non-ABS Single Disc
Harley Davidson Softail Softail 2006 Non-ABS Single Disc
Harley Davidson Softail Softail 2007 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2000 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2001 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2002 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2003 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2004 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2005 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2006 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2007 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2001 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2002 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2003 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2004 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2005 Non-ABS Single Disc
Harley Davidson Softail Deuce Softail 2006 Non-ABS Single Disc
Harley Davidson Softail Softail 2003 Non-ABS Single Disc
Harley Davidson Softail Softail 2004 Non-ABS Single Disc
Harley Davidson Softail Softail 2005 Non-ABS Single Disc
Harley Davidson Softail Softail 2006 Non-ABS Single Disc
Harley Davidson Softail Springer Softail 2003 Non-ABS Single Disc
Harley Davidson Softail Springer Softail 2004 Non-ABS Single Disc
Harley Davidson Softail Springer Softail 2005 Non-ABS Single Disc
Harley Davidson Softail Springer Softail 2006 Non-ABS Single Disc
