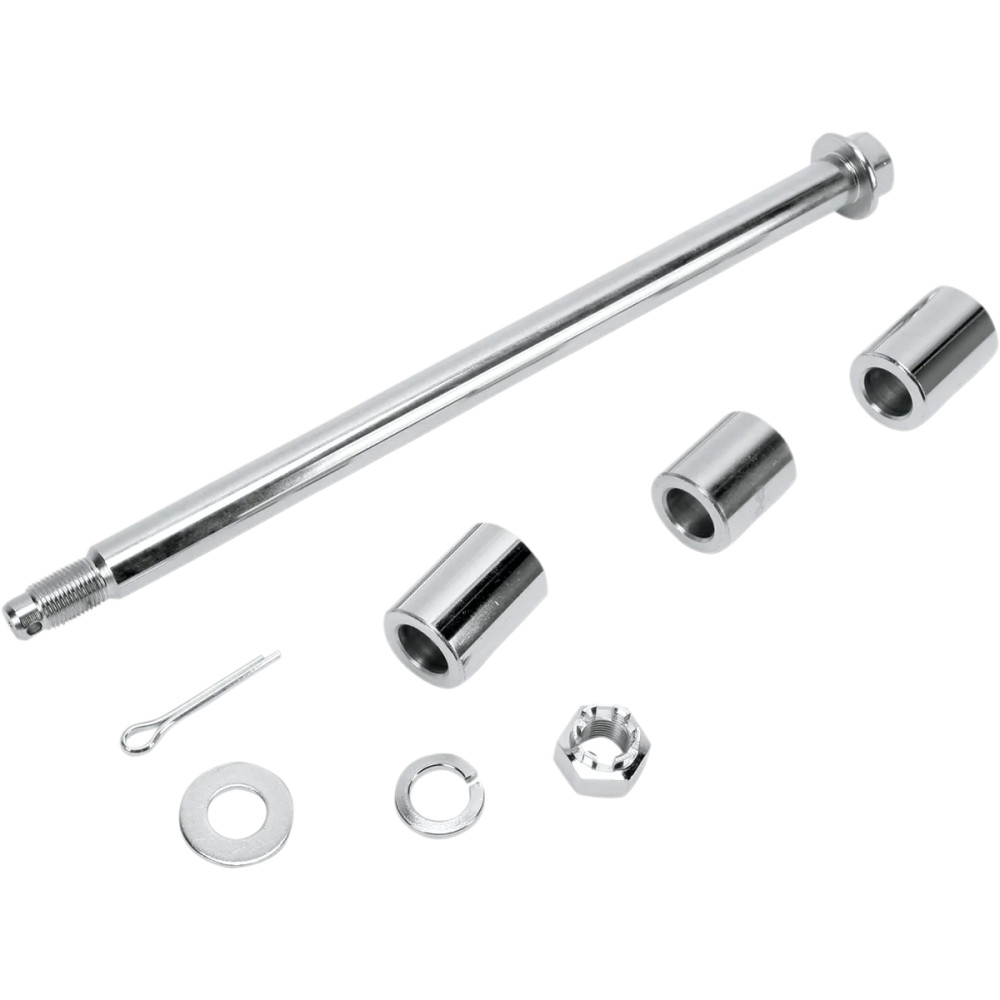

Rear Axle Kit — 13 in, 3/4 in

Drag Specialties Rear Axle Kit — 13 in, 3/4 in

Fits: Dyna 2000-2005 · CVO 2001-2002

DRAG SPECIALTIES
0214-0047
16-0401-BC520H
Complete axle kit includes axle, spacers, nuts and washers. Measure length from inside of bolt head to end of threads. ABS models use one spacer.
Our price €71.39
RRP: €79.03RRP = manufacturer's recommended retail price
VAT included
Currently unavailable See available alternatives below

Available alternatives

Description

Rear Axle Kit — complete mounting kit for axle replacement.

  • Kit includes axle, spacers, nuts and washers.
  • Rear axle length is measured from the inside of the bolt head to the end of the threads.
  • Models with ABS require only one spacer within kit.

Follow your vehicle service manual for installation steps and torque specifications.

Specifications

Mounting Position Rear

Fitment

Model Years
Harley Davidson
FXD 1450 (Dyna Super Glide) 2000–2005
FXDC 1450 (Dyna Super Glide Custom) 2005
FXDCI 1450 EFI (Dyna Super Glide Custom) 2005
FXDI 1450 EFI (Dyna Super Glide) 2004–2005
FXDL 1450 (Dyna Low Rider) 2000–2005
FXDLI 1450 EFI (Dyna Low Rider) 2004
FXDS-CON 1340 (Dyna Super Glide Convertible) 2000
FXDWG 1450 (Dyna Wide Glide) 2000–2005
FXDWG2 1450 (Dyna Wide Glide Limited Edition) 2001
FXDWG3 1450 (Dyna Wide Glide Limited Edition) 2002
FXDWGI 1450 EFI (Dyna Wide Glide) 2004–2005
FXDX 1450 (Dyna Super Glide Sport) 2000–2004
FXDXI 1450 EFI (Dyna Super Glide Sport) 2004–2005
FXDXT 1450 (Dyna Super Glide T-Sport) 2001–2003

Part numbers

Manufacturer part number 16-0401-BC520H
: 0214-0047
Currently unavailable

Data sheet

Units
Kit
Color/Finish
Chrome, Silver
Base Color
Silver
Brand
DRAG SPECIALTIES
Axle Diameter
19,1 mm (3/4")
Length
33.02 cm (13")
Material
Chromoly Steel
Finish
Chrome
Model Family
CVO
Dyna

Vehicle Fitments

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Dyna Super Glide Dyna 2000
Harley Davidson Dyna Super Glide Dyna 2001
Harley Davidson Dyna Super Glide Dyna 2002
Harley Davidson Dyna Super Glide Dyna 2003
Harley Davidson Dyna Super Glide Dyna 2004
Harley Davidson Dyna Super Glide Dyna 2005
Harley Davidson Dyna Super Glide Custom Dyna 2005
Harley Davidson Dyna Super Glide Custom Dyna 2005
Harley Davidson Dyna Super Glide Dyna 2004
Harley Davidson Dyna Super Glide Dyna 2005
Harley Davidson Dyna Low Rider Dyna 2000
Harley Davidson Dyna Low Rider Dyna 2001
Harley Davidson Dyna Low Rider Dyna 2002
Harley Davidson Dyna Low Rider Dyna 2003
Harley Davidson Dyna Low Rider Dyna 2004
Harley Davidson Dyna Low Rider Dyna 2005
Harley Davidson Dyna Low Rider Dyna 2004
Harley Davidson Dyna Super Glide Convertible Dyna 2000
Harley Davidson Dyna Wide Glide Dyna 2000
Harley Davidson Dyna Wide Glide Dyna 2001
Harley Davidson Dyna Wide Glide Dyna 2002
Harley Davidson Dyna Wide Glide Dyna 2003
Harley Davidson Dyna Wide Glide Dyna 2004
Harley Davidson Dyna Wide Glide Dyna 2005
Harley Davidson Dyna Wide Glide Limited Edition CVO 2001
Harley Davidson Dyna Wide Glide Limited Edition CVO 2002
Harley Davidson Dyna Wide Glide Dyna 2004
Harley Davidson Dyna Wide Glide Dyna 2005
Harley Davidson Dyna Super Glide Sport Dyna 2000
Harley Davidson Dyna Super Glide Sport Dyna 2001
Harley Davidson Dyna Super Glide Sport Dyna 2002
Harley Davidson Dyna Super Glide Sport Dyna 2003
Harley Davidson Dyna Super Glide Sport Dyna 2004
Harley Davidson Dyna Super Glide Sport Dyna 2004
Harley Davidson Dyna Super Glide Sport Dyna 2005
Harley Davidson Dyna Super Glide T-Sport Dyna 2001
Harley Davidson Dyna Super Glide T-Sport Dyna 2002
Harley Davidson Dyna Super Glide T-Sport Dyna 2003
